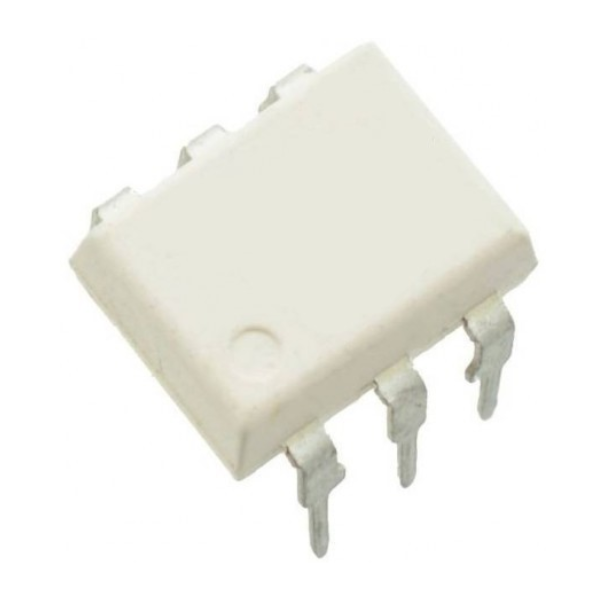

MCT2E Optocoupler Phototransistor IC DIP-6 Package

The MCT2E is a versatile optocoupler that provides electrical isolation between two circuits. It consists of a gallium arsenide infrared LED and a silicon NPN phototransistor, allowing for efficient signal transfer while maintaining isolation.

Key Features:

• Compact DIP-6 package: Easy to integrate into your designs.
• Wide operating temperature range: Suitable for various environments.
• Gallium arsenide infrared LED: Emits infrared light to control the phototransistor.
• High isolation voltage: Ensures electrical separation between input and output circuits.
• Silicon NPN phototransistor: Converts the received infrared light into an electrical signal.

Specifications:

• Package: DIP-6
• Input Current : 100mA (max)
• Output Current : 50mA (max)
• Isolation Voltage: 5300 VRMS
• Forward Voltage : 1.5V (typical)
• Collector-Emitter Saturation Voltage : 0.4V

Applications:

• Motor control
• Signal isolation
• Noise suppression
• Power supply control
• Industrial automation

DATA SHEET AND USECASE

Key Features:

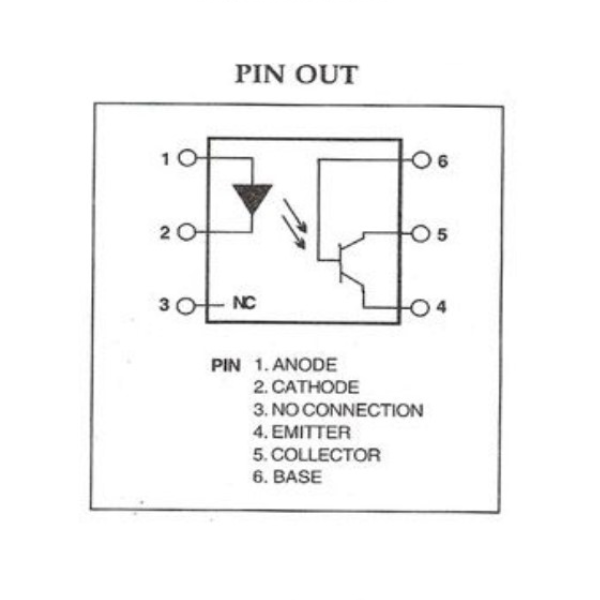

• Standard 6-pin DIP package
• High isolation voltage: 5300 VRMS​
• Interfaces with common logic families​
• Low input-output coupling capacitance (< 0.5 pF)​
