Mini 3PI car N20 Caster Robot Ball Wheel

DESCRIPTION :

The Mini 3PI Car N20 Caster Robot Ball Wheel is a specialized wheel designed for use in robotic applications, particularly for smaller robots like the Mini 3PI car. It features a unique ball-shaped design and is intended to provide maneuverability and stability.

Key Features:

• Ball-Shaped Design: The ball-shaped design allows for omnidirectional movement, enabling the robot to rotate and move in any direction without changing its orientation.
• N20 Size: The wheel is specifically designed to fit the Mini 3PI car and other small-scale robots.
• Caster Function: The wheel acts as a caster, allowing the robot to rotate freely around its axis.
• Durability: Made from high-quality materials, ensuring long-lasting performance and reliability.

DATA SHEET AND USECASE

Key Features:

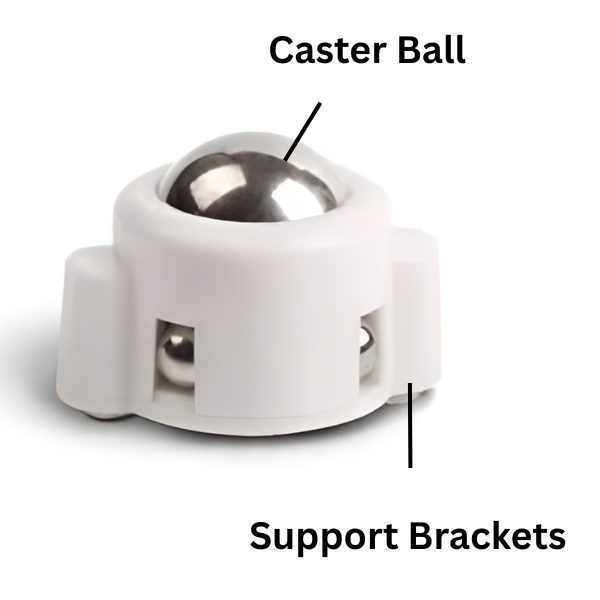

• Material Composition: The wheel comprises four small balls and a central 12mm large steel ball, all made from 304 stainless steel to prevent rusting over time. The outer ring is constructed from plastic, ensuring durability and longevity.

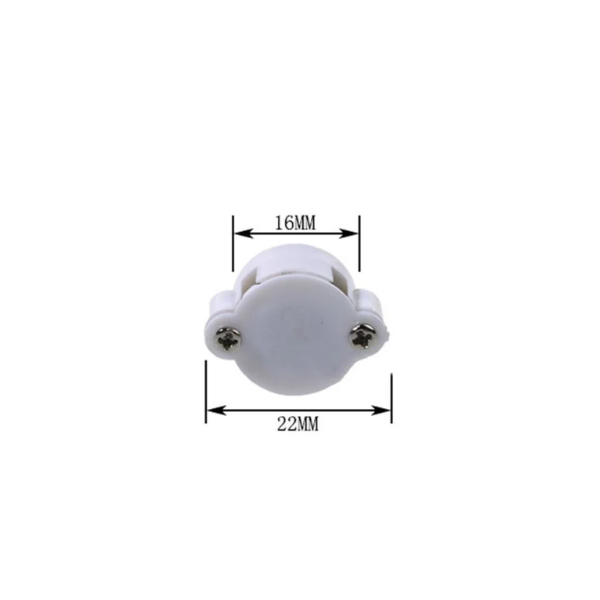

• Dimensions: The wheel has a diameter of 22mm and a height of 15mm, with an installation screw hole spacing of 16.5mm.

• Weight: Each wheel weighs approximately 10 grams, making it lightweight and suitable for small robotic applications.
