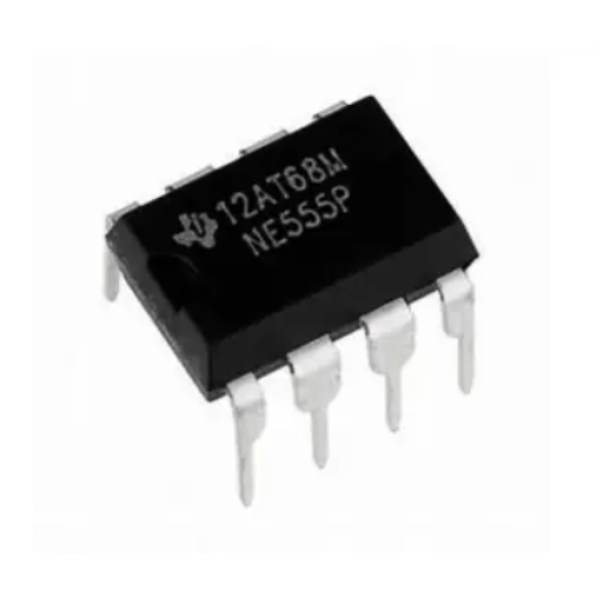

NE555 Timer IC (Pack of 2)

NE555 Timer IC: A Versatile Timing Solution

The NE555 timer IC is a highly versatile and reliable component used for a wide range of timing applications. Its flexibility, ease of use, and affordability make it a popular choice for electronic projects.

Key Features:

• Precision Timing: Offers accurate timing control for various applications.
• Adjustable Duty Cycle: Allows you to customize the on-time and off-time of the output signal.
• Wide Timing Range: Capable of generating time delays from microseconds to hours.
• Astable and Monostable Modes: Supports both stable (oscillator) and monostable (one-shot) modes of operation.
• TTL-Compatible Output: Easily interfaces with TTL-compatible digital circuits.

Applications:

• Timers and Delays: Used to create precise time delays for various applications, such as blinking LEDs, generating sound effects, and controlling motor movements.
• Oscillators: Generates periodic waveforms for frequency generation and signal modulation.
• Pulse Generators: Produces square wave pulses for various applications, including digital circuits and control systems.
• Sequencers: Used in sequencer circuits to control the timing of events.

Specifications:

• Supply Voltage: Typically 5V
• Operating Temperature: 0°C to 70°C
• Output: TTL-compatible
• Timing Range: Microseconds to hours

DATA SHEET AND USECASE

Key Features:

• Timing Intervals: Capable of producing time delays ranging from microseconds to hours.

• Operating Modes:

  • Monostable Mode: Generates a single output pulse in response to an external trigger.
  • Astable Mode: Functions as an oscillator, producing a continuous square wave output.

• Adjustable Duty Cycle: Allows customization of the output signal's high and low periods.

• Output Compatibility: Can source or sink up to 200 mA, making it compatible with TTL logic levels.
