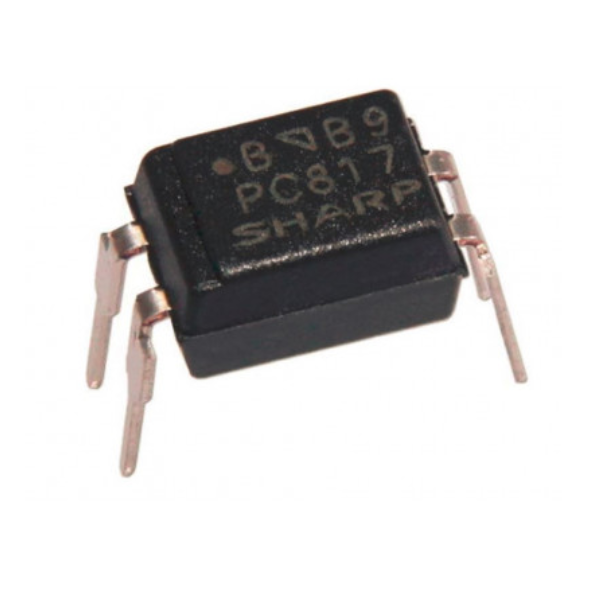

PC817 Opto Coupler IC DIP Pack 10

PC817 Optocoupler IC (DIP-14, Pack of 10)

The PC817 is a versatile optocoupler designed to provide electrical isolation between circuits while maintaining reliable signal transfer. It's ideal for applications requiring isolation and protection from high voltages or transients.

Key Features:

• High Isolation Voltage: Offers a high isolation voltage between the input and output sides, ensuring electrical safety and preventing interference.
• Fast Switching Speed: Provides rapid switching times for efficient signal transmission.
• Wide Operating Voltage Range: Operates from a wide range of supply voltages, making it compatible with various systems.
• Compact Design: Available in a convenient DIP-14 package for easy integration into your circuits.
• Reliable Performance: Offers consistent and reliable operation over a wide temperature range.

Applications:

• Signal Isolation: Used to isolate signals between different circuits, preventing electrical interference and protecting sensitive components.
• Coupling: Couples signals between different voltage levels or circuit types.
• Industrial Control: Employed in industrial control systems for various applications, such as motor control and sensor interfacing.
• Automotive Electronics: Integrated into automotive systems for signal isolation and protection.

Specifications:

• Package: DIP-14
• Isolation Voltage: High isolation voltage (check datasheet for specific value)
• Current Transfer Ratio (CTR): Typically 50% or higher
• Operating Temperature: -40°C to 100°C
• Input Voltage: Varies depending on the specific model
