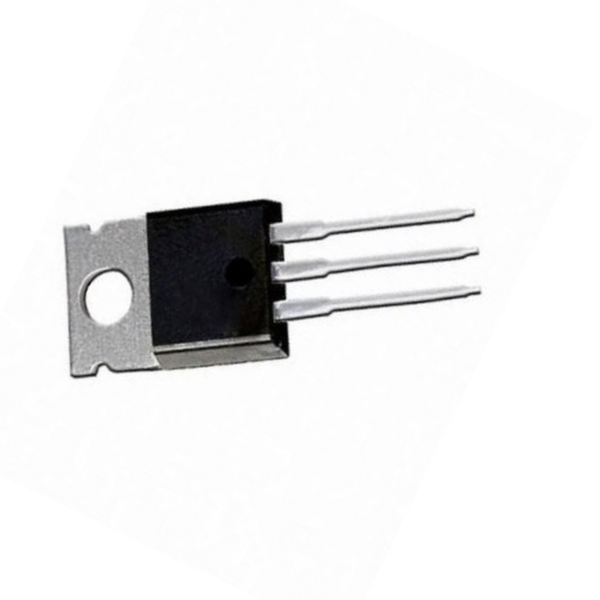

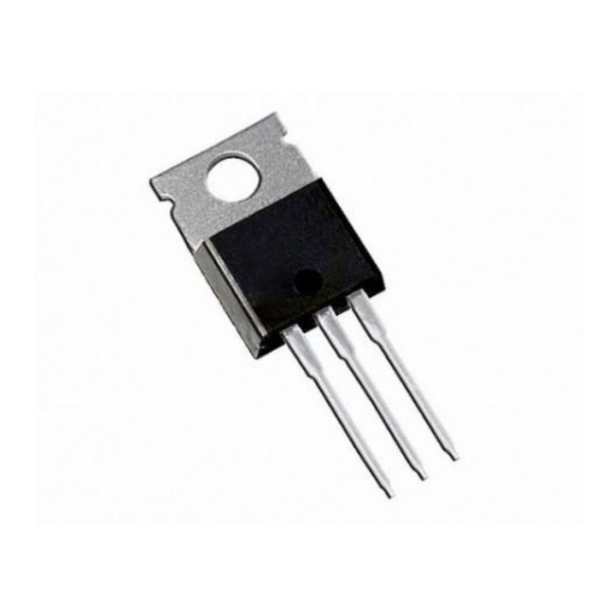

TIP41C NPN Power Transistor 100V 6A TO-220 Package Pack 5

Description:

The TIP41C is a high-power NPN transistor designed for demanding applications that require high current and voltage ratings. It's a versatile component suitable for a wide range of electronic circuits, from power amplifiers to motor control.

Key Features:

• High Gain: Offers a typical current gain (hFE) of 200-300.
• Wide Operating Temperature: Can operate from -55°C to 150°C.
• NPN Transistor: Offers both amplification and switching capabilities.
• TO-220 Package: A popular package for power transistors, providing good heat dissipation.
• High Power Rating: Handles up to 6A of continuous collector current and 100V between collector and emitter.

Applications:

• Motor Control
• Power Supplies
• Power Amplifiers
• Switching Circuits
• Industrial Automation

DATA SHEET AND USECASE

Key Specifications:

• Collector Current (I_C): 6 A​
• Power Dissipation (P_D): 65 W​
• Collector-Emitter Voltage (V_CEO): 100 V​
• DC Current Gain (h_FE): 15 (minimum) at I_C = 3 A, V_CE = 4 V
