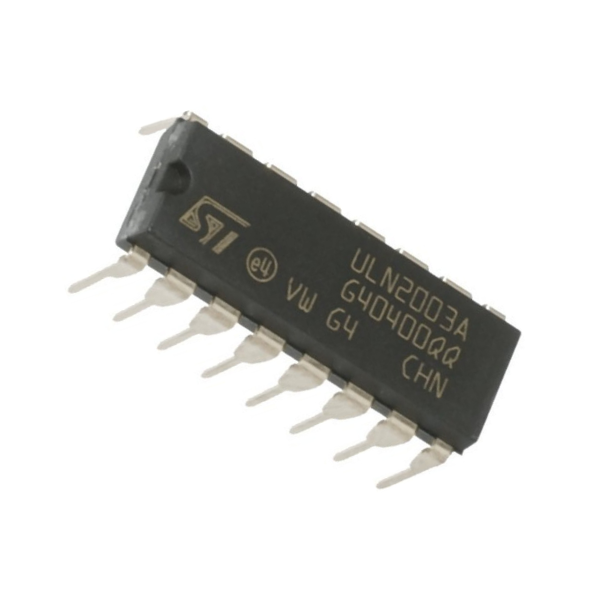

ULN2003 (SO16) Driver Array IC (Pack of 4)
Description:
The ULN2003 driver array IC is a versatile component designed to drive high-current loads such as solenoids, relays, DC motors, and LED displays. It provides seven independent Darlington transistor pairs, each capable of handling up to 500mA of continuous current.
Key Features:
- Seven Darlington Transistor Pairs: Offers flexibility for driving multiple loads.
- High Current Capability: Handles up to 500mA of continuous current per channel.
- Integrated Suppression Diodes: Protects against inductive load transients.
- TTL/CMOS/PMOS/DTL Compatible Inputs: Easily interfaces with various logic families.

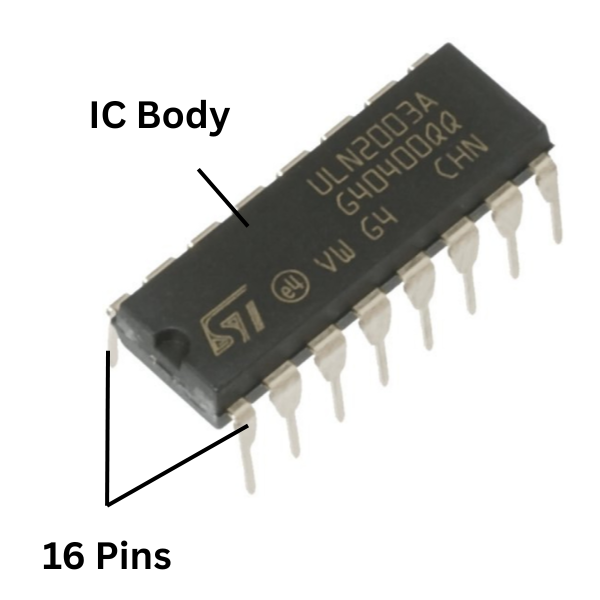

- SO16 Package: Compact and easy-to-use package.
Applications:
- Motor Control: Drive DC motors and solenoids.
- LED Displays: Drive LED segments and matrices.
- Relay Control: Control relays for switching high-current loads.
- Industrial Automation: Power various industrial components.
- Hobby Projects: Drive components in DIY projects.
Specifications:
- Output Voltage : 50V
- Input Voltage : 30V (for ULN2002A/D, ULN2003A/D, ULN2004A/D)
- Continuous Collector Curren t: 500mA
- Continuous Base Current : 25mA
- Clamping Diode Continuous Current : 350mA
- Clamping Diode Reverse Voltage : 50V
- Operating Ambient Temperature : -40°C to +85°C
Order now and benefit from the versatility and performance of the ULN2003 driver array IC!
