Description:

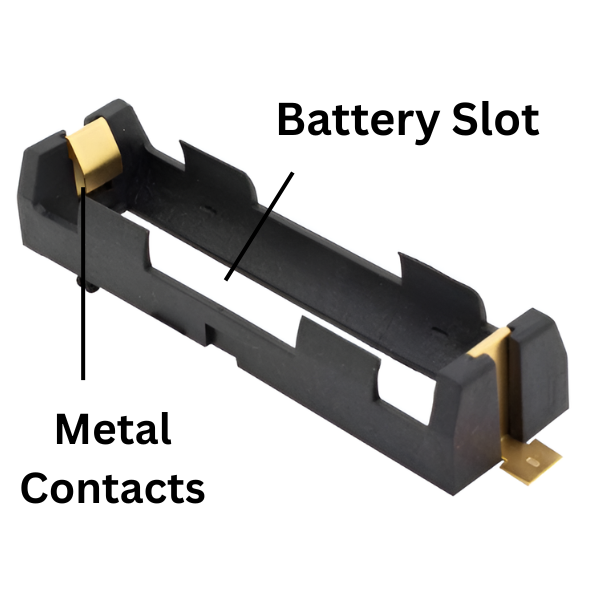

This 18650 SMD/SMT Single Battery Holder is a compact and efficient solution for mounting a single 18650 lithium-ion battery in your electronic projects. It is designed for surface mount technology (SMT) assembly, making it ideal for PCB-based applications. The holder provides a secure and reliable way to incorporate a 18650 battery into your design.
Key Features:
- Designed for 18650 batteries: Specifically accommodates the standard 18650 cylindrical battery format.
- SMD/SMT mounting: Suitable for surface mount assembly on PCBs.
- Secure hold: Holds the battery firmly in place to prevent movement and potential damage.
- Compact size: Takes up minimal space on your PCB.
- Durable construction: Made from a sturdy material to ensure long-lasting performance.
Applications:
- PCB-based projects: Ideal for integrating 18650 batteries into electronic circuits and devices.
- Portable electronics: Used in devices that require a compact and reliable battery solution.
- Hobby and DIY projects: Perfect for powering small electronic projects and experiments.
DATA SHEEYT AND USECASE
Key Specification:
- Material: Constructed from high-temperature Nylon 46, UL 94V-0 rated, suitable for reflow soldering processes.
- Contacts: Made of 0.012-inch (0.30 mm) stainless steel with gold flash plating, ensuring reliable electrical connectivity.
- Operating Temperature Range: -50°C to +145°C, accommodating various environmental conditions.
- Mounting Type: Surface-mount design with SMD (SMT) tabs, compatible with standard PCB layouts.
