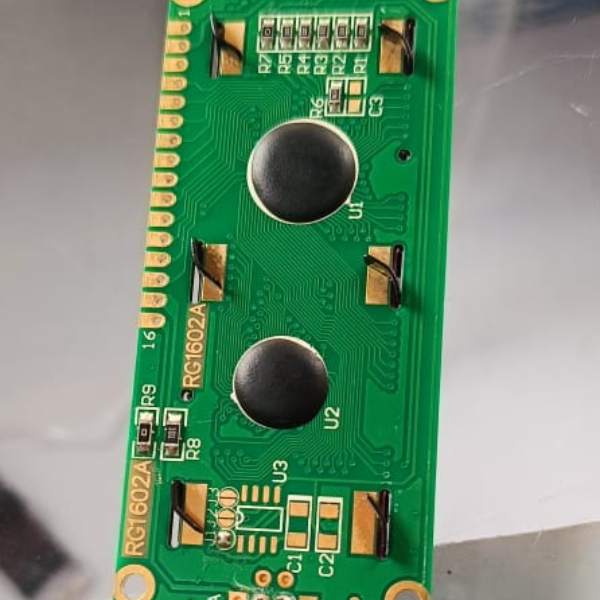

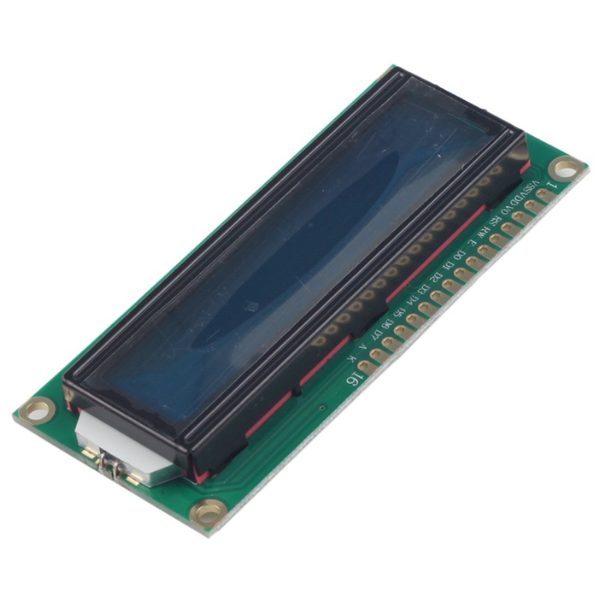

LCD 16x2 Blue Display

Description:

An LCD 16x2 Blue Display is a common type of liquid crystal display that provides a 16-character by 2-line display. The blue backlight ensures good visibility in various lighting conditions, and the white characters offer clear and readable text. This type of display is often used in electronic projects, including Arduino and Raspberry Pi applications.

Key Features:

• 16x2 Character Display: Provides ample space for displaying text and information.
• Blue Backlight: Ensures good visibility in various lighting conditions.
• White Characters: Offers clear and readable text.
• Parallel Interface: Easily connects to microcontrollers using parallel data lines.
• Compact Design: Fits conveniently into various projects.

Applications:

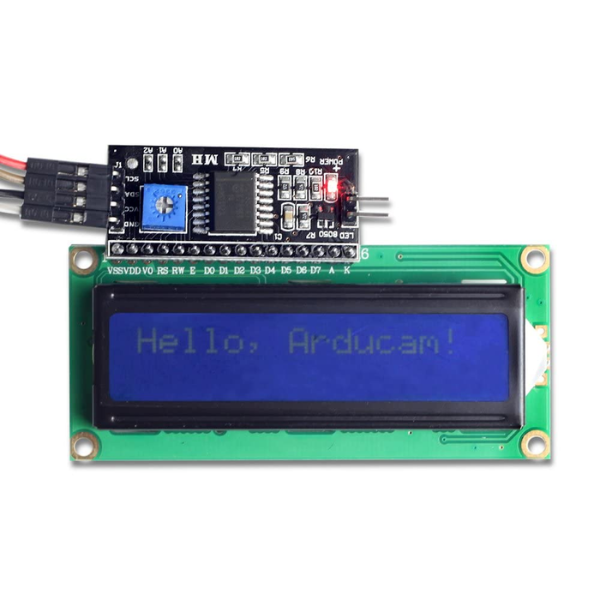

• Arduino and Raspberry Pi Projects: Display text, sensor data, or other information.
• Electronic Gadgets: Create custom displays for DIY projects.
• Industrial Applications: Monitor machine status or process parameters.
• Educational Purposes: Teach electronics and programming concepts.

Technical Specifications:

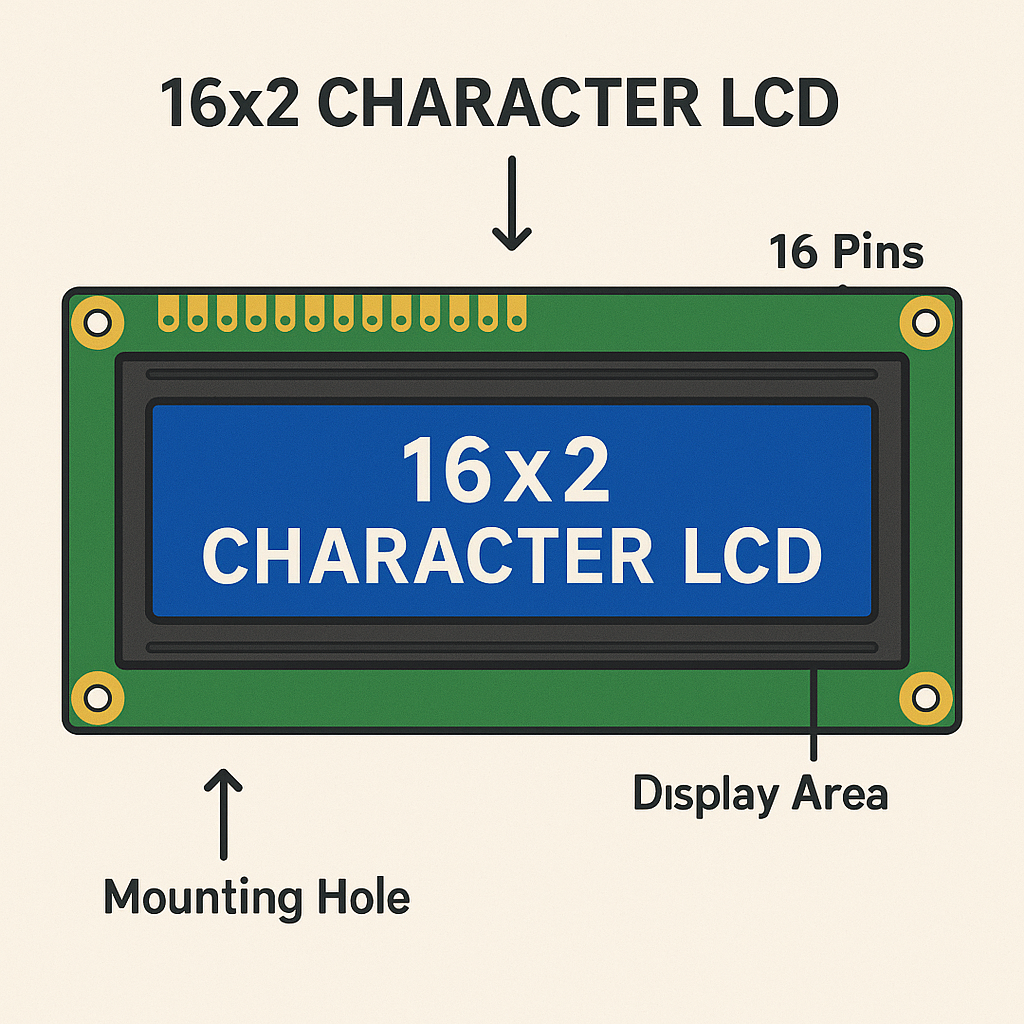

• Display Size: 16x2 characters
• Backlight Color: Blue
• Character Color: White

DATA SHEET AND USECASE

Electrical Characteristics:

• Operating Voltage: 4.7V to 5.3V (typically 5V)
• Current Consumption: 1.5mA (typical)
• Viewing Angle: 6 o'clock
• Backlight: LED backlight, typically blue

Display Specifications:

• Character Size: 5x8 dots per character
• Display Format: 16 characters per row, 2 rows
• Contrast Adjustment: Via a potentiometer on the VO pin
• Backlight: Can be controlled (either on or off) using the A (anode) and K (cathode) pins.
