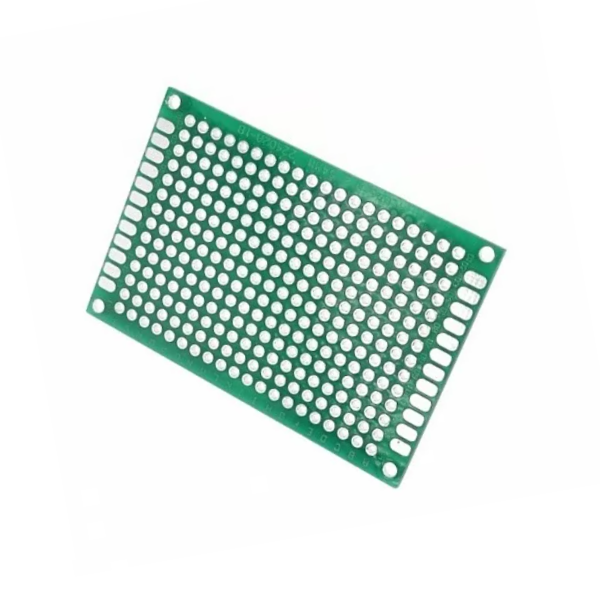

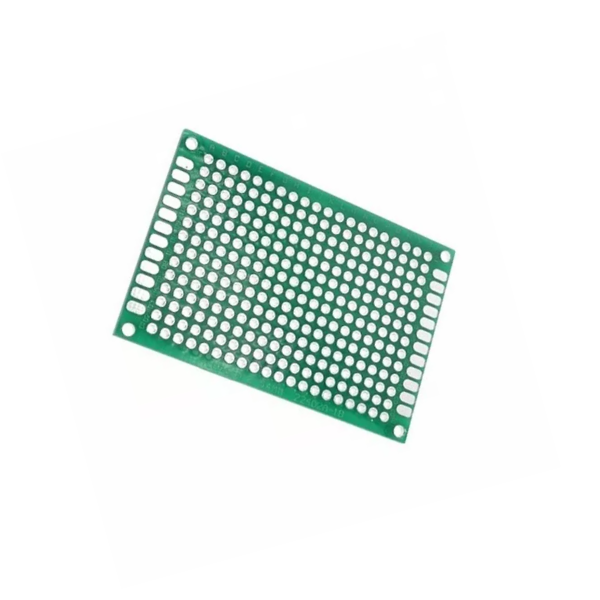

5 x 7 cm Universal PCB Prototype Board Double

(0 Reviews)
In stock

Category: PCB Related Tools

SKU: 1980


MRP Price:
₹59 59% OFF
Discounted Price:
₹25 (Pc)

Quantity:
(20 available)

Weight:
30 g

Total Price:
Bulk Order
Share:
Sold By
DSMElectro Solutions Private Limited
(1249 customer reviews)

5x7cm Double-Sided PCB: Your Compact Prototyping Canvas

Need a versatile and affordable platform for your small-scale electronic projects? Our 5x7cm double-sided PCB is the perfect solution. This compact board offers a generous workspace for prototyping and testing your designs without taking up too much room.

Key Features:

  • Ideal Dimensions: Perfect for smaller-scale projects and limited workspace.
  • Double-Sided Convenience: Design on both sides for maximum flexibility.
  • Durable Construction: Crafted from high-quality FR4 material with a copper thickness of 1-4 oz.
  • Precise Drilling: Standard 0.1" spacing between holes for easy component placement.

Technical Specifications:

  • Dimensions: 5x7cm
  • Base Material: FR4
  • Copper Thickness: 1-4 oz
  • Board Thickness: 1.6mm
  • Minimum Hole Size: 0.3mm
  • Surface Finishing: HASL

Ideal Applications:

  • Hobbyist Projects: Create unique electronic gadgets and devices.
  • Educational Purposes: Learn about electronics and circuit design.
  • Rapid Prototyping: Quickly test and iterate on your ideas.

Order your 5x7cm double-sided PCB board today and unleash your creativity!

DATA SHEET AND USECASE

Key Features:

  • Dimensions: 5 cm x 7 cm
  • Material: High-quality FR4 glass epoxy
  • Thickness: Approximately 1.6 mm
  • Hole Pitch: Standard 2.54 mm (0.1 inch) spacing
  • Hole Diameter: Typically around 1 mm
  • Copper Thickness: Ranges from 1 to 4 oz
  • Surface Finish: Typically HASL (Hot Air Solder Leveling)
