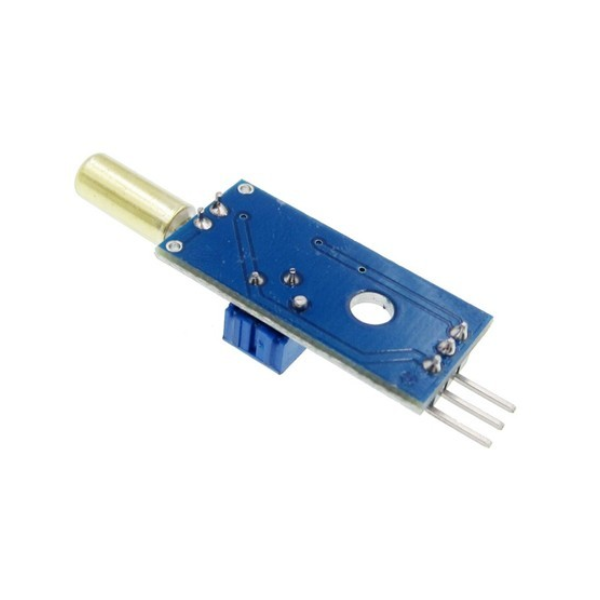

Angle Sensor Board Tilt Sensor Module High Sensitivity SW-520D

1) Using high sensitive switch SW-520-d as the sensor.
2) The working voltage of 3.3 V to 5 V.
3) Output form: digital switch output (0 and 1).
4) Use the LM393 wide voltage comparator.
5) The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 m

Description:

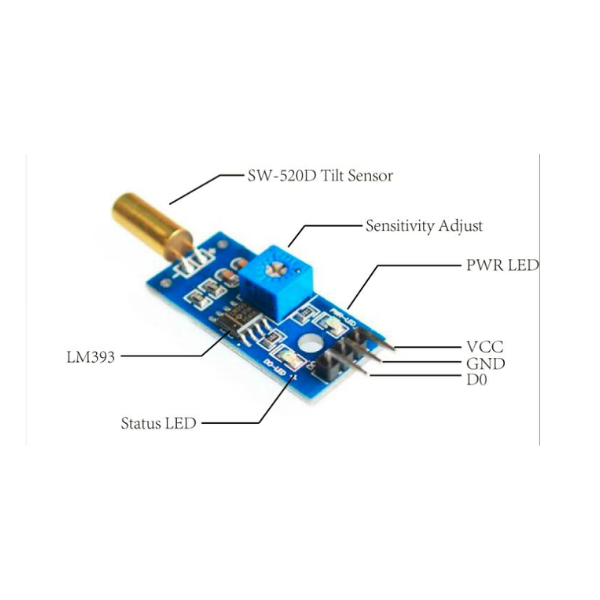

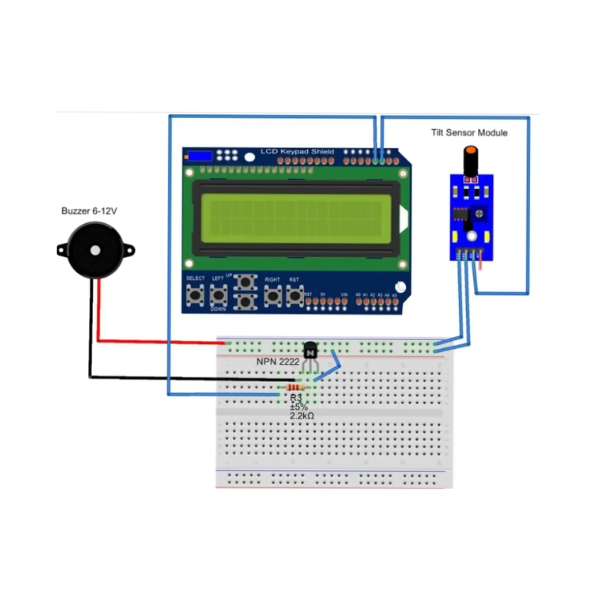

SW-520D Angle sensor module/Tilt sensor module ball switch / vibration switch. Using a highly sensitive point of view as a sensor switch SW-520D. The comparator output signal is clean, good waveform, driving ability, more than 15mA. Switch module output depends on the angle of the switch is turned on and off, when the angle switches off, DO output high angle switch is turned on, DO output low. The output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the angle change. The output of the module can directly drive relays, which can be composed of a high-power switching angles to protect electrical equipment and other products when dumped automatic power-off function.

Specifications:​

• The working voltage of 3.3V-5V.
• The output format: digital switching outputs (0 and 1).
• PCB board size: 3.2cm x 1.4cm.
• Using a wide voltage LM393 comparator.

Applications:

A tilt sensor, or tilt switch, is a device used for measuring the tilt of an object in multiple axes with reference to an absolute level plane.

Package Include:

• 1 X  Angle Sensor Board Tilt Sensor Module High Sensitivity SW-520D.
