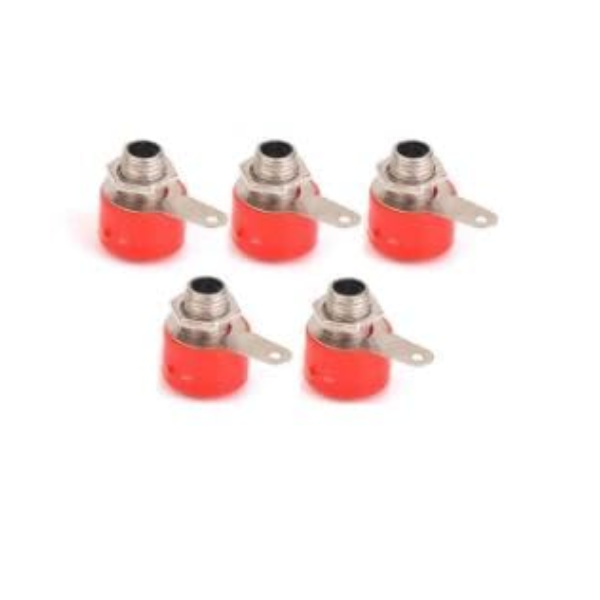

Banana SOCKET 5MM FEMALE RED (Pack of 10)

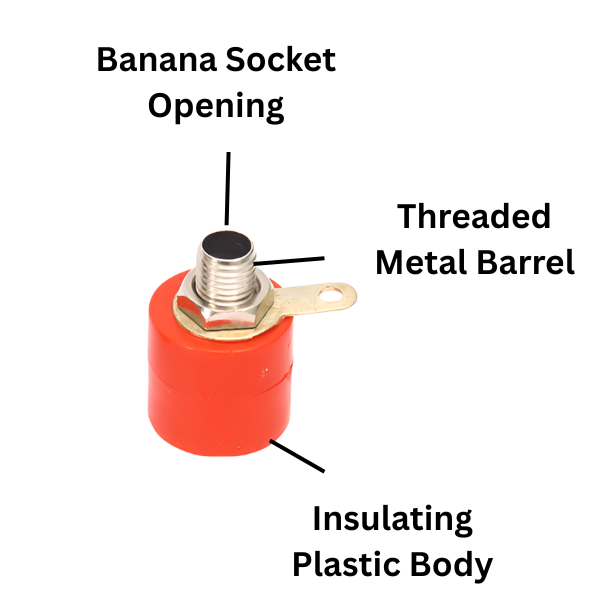

5mm Banana Plug Socket - Secure and Reliable Connection

Upgrade your audio and electronic projects with this high-quality 5mm banana plug socket. Designed for secure and efficient connections, this connector is perfect for a wide range of applications.

Key Features:

• Durable Construction: The nickel-plated aluminum alloy core and hard plastic shell provide long-lasting performance and reliability.
• Versatile Compatibility: Suitable for 5mm banana plugs, spade terminals, or bare wires, making it adaptable to various applications.
• Easy Installation: The direct soldering feature simplifies the installation process.
• Color-Coded for Clarity: The black/red color coding ensures proper polarity, preventing errors and ensuring optimal performance.

Applications:

• Speaker enclosures
• Amplifiers
• AV receivers (for center speakers)

Specifications:

• Connector Type: 5mm Banana Plug Socket
• Material: Nickel-plated aluminum alloy core, hard plastic shell
• Compatibility: 5mm banana plugs, spade terminals, bare wires
• Color: Black/Red (color-coded)

DATA SHEET AND USECASE

Key Specifications:

• Connector Size: 5 mm
• Colour: Red
• Gender: Female
• Termination Method: Solder or tab termination
• Voltage Rating: Up to 1000V
• Current Rating: Varies; commonly around 10A to 24A
• Contact Material: Brass with nickel or tin plating
• Insulation Material: Materials such as polypropylene or nylon
• Mounting Type: Panel mount with threaded body and supplied with nut and washer
