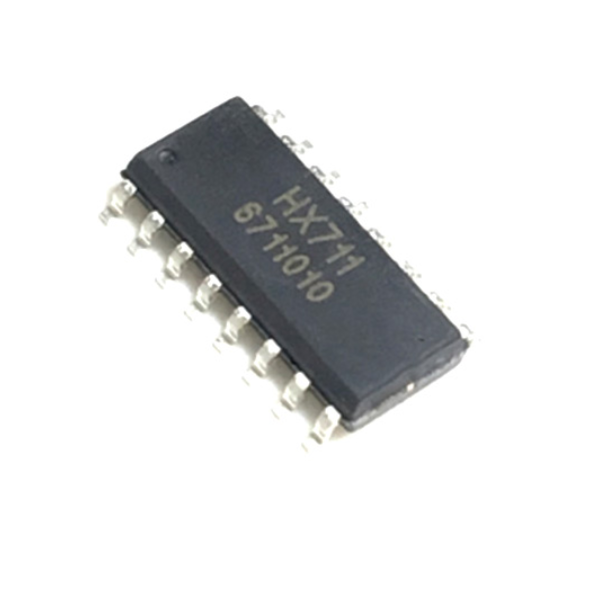

HX711 AVIA Weighing Sensor Chip SOP16 DIP-16

1) SOP-16 box
2) Operating voltage: 2.6-5.5 VDC
3) Operating temperatures from -40 ° C to + 85 ° C
4) Two selectable differential input channels
5) Active low noise PGA with selectable gain of 32, 64 and 128

Description:

HX711 is an electronic scale module, whose working principle is to convert the measured changes in resistance value changes, through the conversion circuit into electrical output. HX711 AVIA Weighing Sensor Chip SOP16 DIP-16 Home Electronic Component Chips Sensor Arduino Module Raspberry Pi HX711 AVIA Weighing Sensor Chip SOP16 DIP-16 Popular in Popular Product.

Features:

• Operating voltage: 2.6-5.5 VDC

• Operating temperatures from -40 ° C to + 85 ° C

• SOP-16 box

• Two selectable differential input channels

• Active low-noise PGA with selectable gain of 32, 64 and 128

• On-chip power supply regulator for load cell and ADC analog power supply

• Oscillator on the chip that does not require an external component with optional external glass

• Power-on-reset on the chip to simplify the initialization of the digital interface

• Simple digital control and serial interface: controls driven by a pin, no programming required

Package Includes:

• 1 X HX711 Avia SOP16 Weighing Sensor Chip
