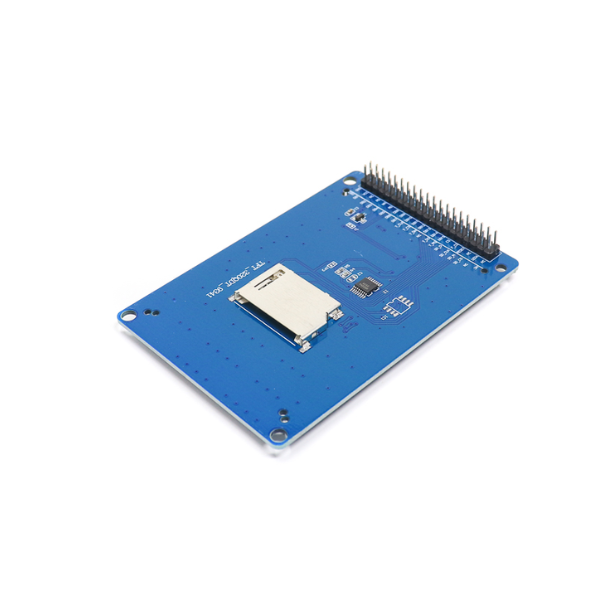

TFT Touch Screen 3.2 inch LCD for Arduino

Overview:

A TFT Touch Screen 3.2 Inch LCD for Arduino is a versatile display module that combines a high-resolution TFT (Thin Film Transistor) LCD screen with a touch-sensitive overlay. This type of display offers a visually appealing interface and allows for interactive user input, making it ideal for various Arduino projects.

Key Features:

• 3.2 Inch Display: Provides a generous viewing area for displaying graphics, text, and images.
• TFT Technology: Delivers vibrant colors, high contrast, and wide viewing angles.
• Touchscreen Functionality: Enables users to interact with the display through touch gestures.
• Arduino Compatibility: Designed for seamless integration with Arduino boards.
• Resolution: [Specify the resolution of the display, e.g., 320x240 pixels]
• Touch Sensitivity: [Specify the touch sensitivity, e.g., resistive or capacitive]
• Backlight: [Specify the backlight color and type, e.g., white LED]

Applications:

• Graphical User Interfaces (GUIs): Create interactive interfaces for Arduino-based projects.
• Data Visualization: Display sensor readings, charts, and graphs.
• Gaming: Develop simple games or game prototypes.
• Educational Tools: Teach programming and electronics concepts.
• Home Automation: Control smart devices and systems through a touch interface.

DATA SHEET AND USECASE

Key Specification:

• Display Specifications:

  • Size: 3.2 inches
  • Resolution: 320x240 pixels
  • Controller IC: Commonly ILI9341 or HX8357B
  • Color Depth: 16-bit color (65,536 colors)

• Touchscreen Specifications:

  • Type: Resistive or Capacitive
  • Touch Controller IC: Often XPT2046

• SD Card Slot:

  • Type: Supports microSD cards
  • Interface: SPI communication

• Electrical Characteristics:

  • Operating Voltage: Typically 3.3V or 5V (depends on the specific module)
  • Current Consumption: Varies based on brightness and usage

• Pinout:

  • Power Pins: VCC (Power), GND (Ground)
  • Data Pins: DB0-DB15 (Data Bus), RS (Register Select), WR (Write), RD (Read), CS (Chip Select), RST (Reset)
  • Touchscreen Pins: T_CLK (Clock), T_CS (Chip Select), T_DIN (Data In), T_DO (Data Out), T_IRQ (Interrupt)
  • SD Card Pins: CS, SCK, MOSI, MISO
