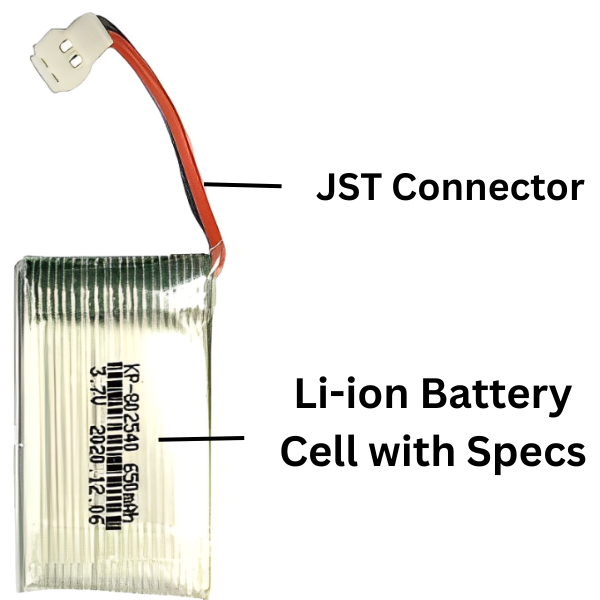

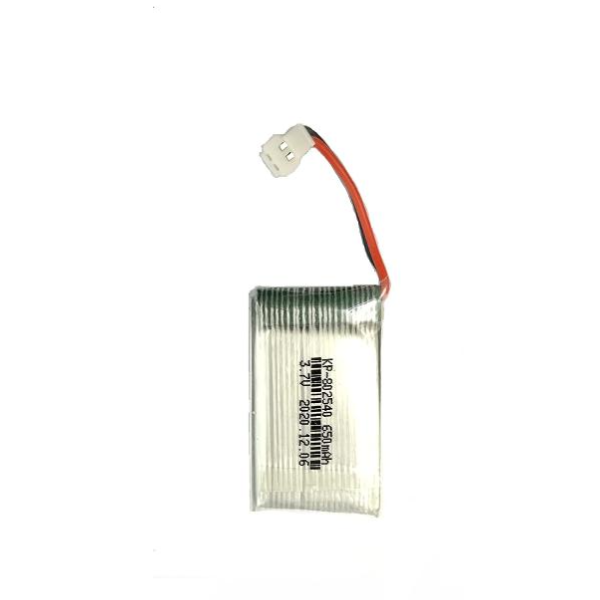

LiPo Rechargeable Battery High-Quality 3.7V 650mAh For Drone

Description:

Power up your drone with this high-capacity 3.7V 650mAh LiPo rechargeable battery. Designed to deliver reliable performance and extended flight times, this battery is a must-have for any drone enthusiast.

Features:

• High Energy Density: Packed with 650mAh of power for longer flight durations.
• Lightweight and Compact: Small and lightweight design for easy installation and optimal weight distribution.
• Wide Operating Temperature Range: Functions reliably in various weather conditions, from -10°C to 55°C.
• Fast Charging: Supports 1C charging for quick recharging between flights.
• High Discharge Rate: Delivers up to 15C discharge current for powerful performance.

Specifications:

• Battery Model: KP 802540
• Nominal Voltage: 3.7V
• Charging Voltage: 4.2V
• Nominal Capacity: 650mAh
• Operating Temperature: -10°C to 55°C
• Discharging Cut-Off Voltage: 3.2V
• Charging Current: 1C (max)
• Discharge Current: 15C (max)
• Dimensions: 43mm x 25mm x 8mm
• Weight: 16g

DATA SHEET AND USECASE

Datasheet Overview:

A typical 3.7V 650mAh LiPo battery, like the LP902530 model, has the following specifications:

• Nominal Voltage: 3.7V
• Capacity: 650mAh
• Energy: 2.41Wh
• Dimensions: 9.0mm (thickness) x 25mm (width) x 30mm (length)
• Weight: Approximately 12g
• Charge Voltage: 4.2V ± 50mV
• Discharge Cut-off Voltage: 2.75V
• Standard Charge Current: 0.2C (130mA)
• Max Continuous Discharge Current: 1C (650mA)
• Cycle Life: Over 500 cycles at 0.2C discharge rate
