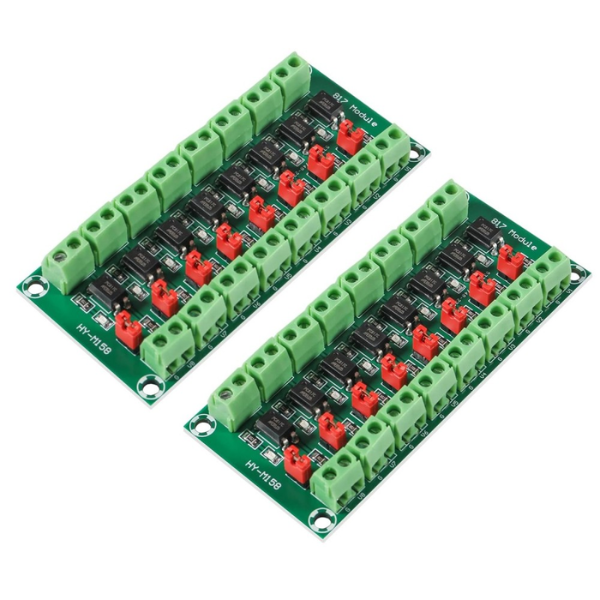

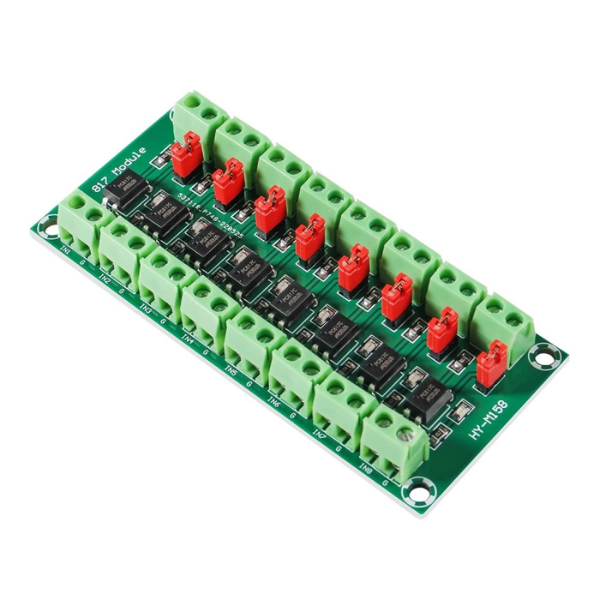

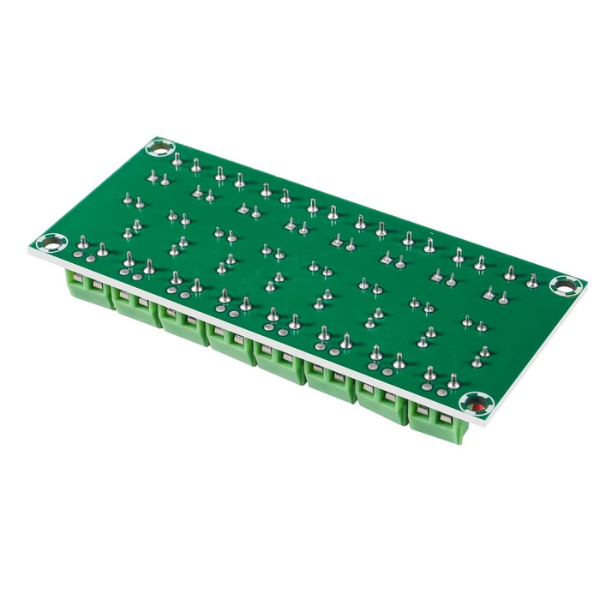

PC817 8 CH Optocoupler Isolation Module - DC 3.6 -30V Driver

Description:-

PC817 8 CH Optocoupler Isolation Module - DC 3.6 -30V Driver

The PC817 8-Channel Optocoupler Isolation Board is a highly reliable module. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.

Specifications

Number of Channels: 8

Optocoupler Model: PC817

Driving Port Signal Voltage: 3.6-24V

Output Port Voltage Port :3.6-30V

Jumper Cap Can Achieve Output Port Is High Potential Or Pull Down Output

Onboard 8-Channel 817 Are Independent :can achieve different voltage control at then same time

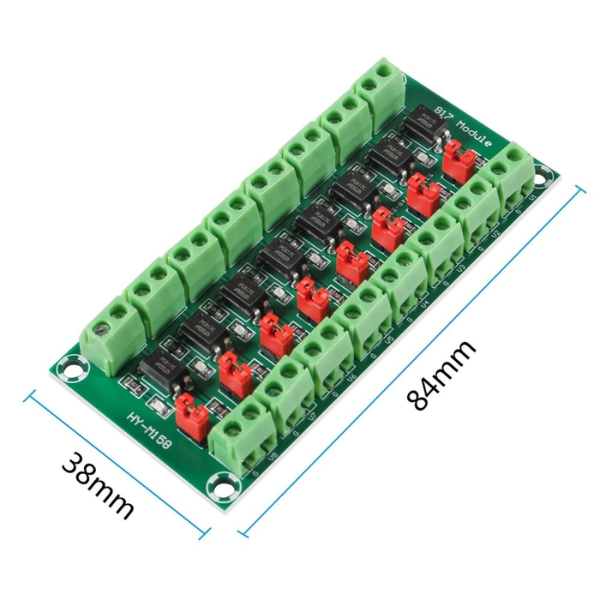

Dimensions: 84*38mm

Applications

Microcontroller and PLC interface isolation

Home automation systems

Industrial automation

Motor control and protection

Signal isolation in noisy environments

Power supply isolation

Package Includes

1x PC817 8 CH Optocoupler Isolation Module
