ST-LINK V2 STM Programmer

Description:

Streamline your STM8 and STM32 microcontroller development with the ST-Link V2 Programmer. This versatile tool offers reliable programming and debugging capabilities, ensuring efficient and effective development workflows.

Key Features:

• Full Compatibility: Fully compatible with the official ST-Link V2 version, supporting automatic firmware updates for optimal performance.
• Wide Support: Supports the entire range of STM32 SWD and STM8 SWIM interfaces using only four pins, simplifying connections.
• Versatile Power Options: Provides both 5V and 3.3V power outputs to accommodate various target boards.

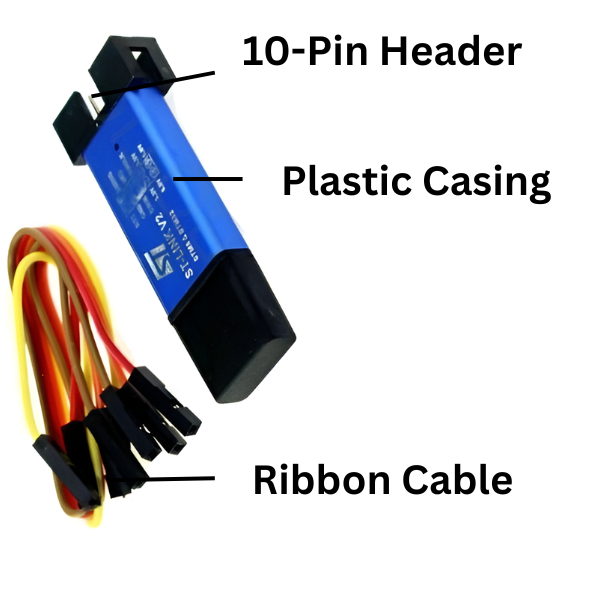

• Durable Construction: Enclosed in a sturdy aluminum alloy case for protection and portability.
• Clear Interface: Features clearly marked pin labels and LED indicators for easy identification and monitoring.
• Overcurrent Protection: Equipped with a 500mA resettable fuse to safeguard your computer from potential damage.
• Flexible Connections: Includes four DuPont wires for convenient customization of target board connections.

Specifications:

• Interface: USB 2.0
• Supported Microcontrollers: STM32, STM8
• Power Outputs: 5V, 3.3V
• Operating Temperature: 0°C to 50°C

Package Includes:

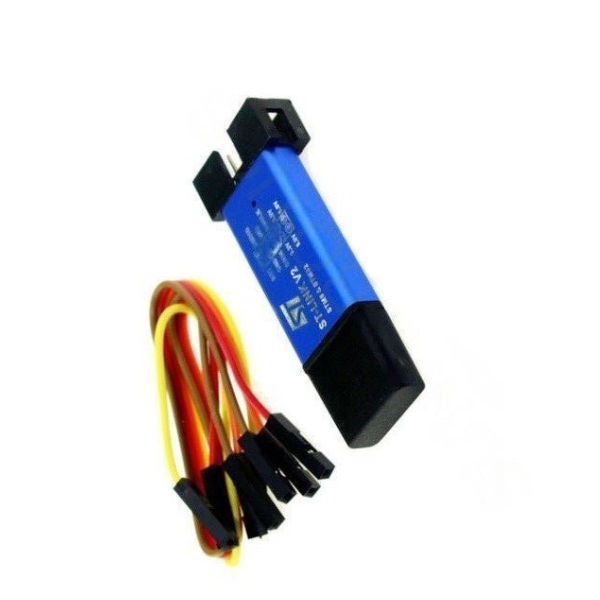

• 1 x ST-Link V2 Programmer
• 1 x Connecting Wires

DATA SHEET AND USECASE

Key Features:

• Interface Compatibility: Supports SWIM for STM8 and JTAG/SWD for STM32 microcontrollers.

• Voltage Range:

  • SWIM interface: 1.65V to 5.5V
  • JTAG/SWD interface: 1.65V to 3.6V with 5V tolerant inputs

• Programming Speed: Offers programming speeds up to 12.8 Kbytes/s in high-speed mode.

• Firmware Updates: Supports direct firmware updates (DFU) to ensure compatibility with the latest devices.

• LED Indicators: Features status LEDs that blink during communication with the PC.

• Isolation Option: The ST-LINK/V2-ISOL variant provides digital isolation between the PC and the target application board, withstanding voltages up to 1000 Vrms.
