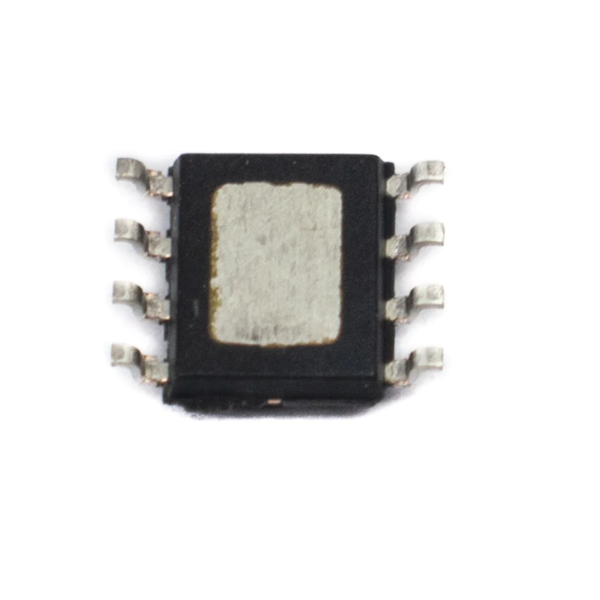

TP4056 SOP8 Lithium Ion Battery Charger IC Pack 6

DESCRIPTION :

TP4056 SOP8 Lithium Ion Battery Charger IC Pack 6

The TP4056 SOP8 Lithium Ion Battery Charger IC pack of 6 is a versatile and efficient solution for charging lithium-ion batteries. This integrated circuit (IC) provides a complete charging solution, including overcharge protection, over-discharge protection, short-circuit protection, and temperature protection.

Key Features:

• Lithium-ion battery charging: Specifically designed for charging lithium-ion batteries of various sizes and capacities.

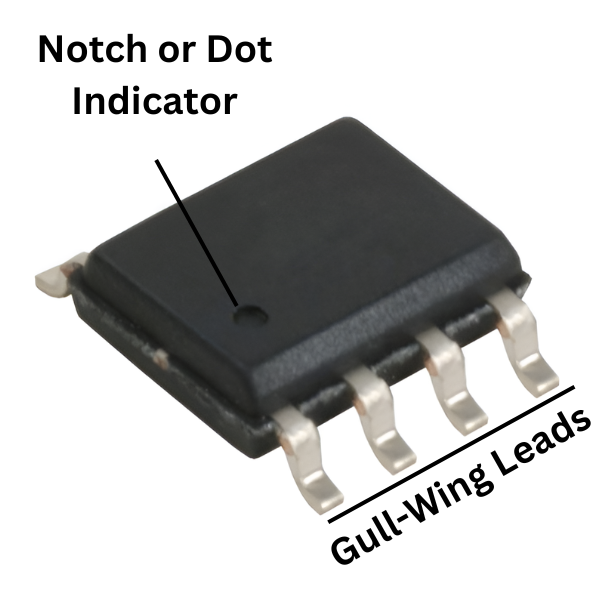

• SOP8 package: Compact and easy to integrate into different electronic designs.
• Overcharge protection: Prevents the battery from being overcharged, which can lead to damage or safety hazards.
• Over-discharge protection: Protects the battery from being over-discharged, which can reduce its lifespan and performance.
• Short-circuit protection: Detects and prevents short circuits, safeguarding both the battery and the charging circuit.
• Temperature protection: Monitors the battery's temperature and shuts down the charging process if it exceeds safe limits, preventing thermal runaway and fire hazards.
• High efficiency: Achieves high charging efficiency, minimizing energy loss during the charging process.
• Easy-to-use: Requires minimal external components for operation, making it convenient to implement in various projects.

Applications:

• Portable electronics: Power banks, smartphones, tablets, laptops, and other devices powered by lithium-ion batteries.
• Medical devices: Portable medical equipment that relies on lithium-ion batteries for power.
• Consumer electronics: Cameras, camcorders, gaming consoles, and other electronic devices.
• Industrial applications: Battery-powered tools, equipment, and systems.

The TP4056 SOP8 Lithium Ion Battery Charger IC pack of 6 is a reliable and convenient solution for charging lithium-ion batteries in various applications. Its comprehensive protection features and high efficiency make it a popular choice for engineers and designers.

DATA SHEET AND USECASE

Key Features:

• Programmable Charge Current: Up to 1000mA, adjustable via an external resistor.
• No External Components Required: Eliminates the need for external MOSFETs, sense resistors, or blocking diodes.
• Preset Charge Voltage: Fixed at 4.2V with 1.5% accuracy.
• Automatic Recharge: Re-initiates charging when the battery voltage drops below a certain threshold.
• Charge Status Indicators: Provides two status pins to indicate charging status and input voltage presence.
• Thermal Regulation: Adjusts charge current to limit die temperature during high power operation or elevated ambient temperatures.
