USB mini-B Connector (SMD) pack 2

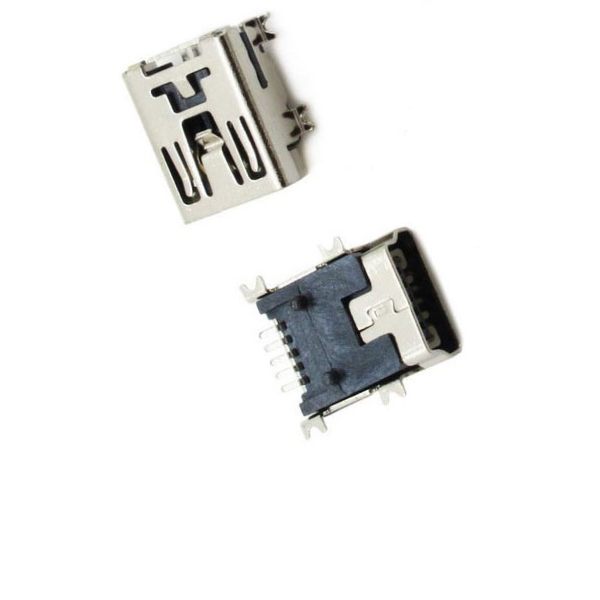

Mini-B USB Connector: Compact and Reliable for Your Projects

This 5-pin Mini-B surface mount connector is perfect for small electronic devices requiring a USB connection. Ideal for MP3 players, media readers, USB hubs, and other compact gadgets, this connector offers a reliable and efficient solution.

Key Features:

• Mini-B Type: A standard USB connector for smaller devices.
• Surface Mount Design: Easily integrates into your PCB.
• 5 Pins: Provides a versatile connection for data and power.
• Compact Size: Ideal for space-constrained applications.
• Durable Construction: Ensures long-lasting performance.

Applications:

• MP3 Players: Connect to computers for file transfer and charging.
• Media Readers: Transfer data from USB storage devices.
• USB Hubs: Expand USB ports on your computer.
• Other Small Devices: Power and connect various electronic gadgets.

Specifications:

• Connector Type: USB
• Gender: Female
• Number of Pins: 5
• Termination Method: Solder
• Mounting Type: Surface Mount
• Current Rating: 0.5A
• Voltage Rating (AC): 5V
• Voltage (Test): 100V

Upgrade your electronics projects with this versatile Mini-B USB connector.

DATA SHEET AND USECASE

KEY FEATURES:

• Molex 54819-0519: A right-angle, five-position Mini-B receptacle suitable for On-The-Go applications. The datasheet provides comprehensive information on its design and usage.

• Samtec MUSB-05-F-B-SM-A: This connector is a five-position, right-angle Mini-B receptacle designed for surface-mount applications. Detailed specifications are available in its datasheet.
