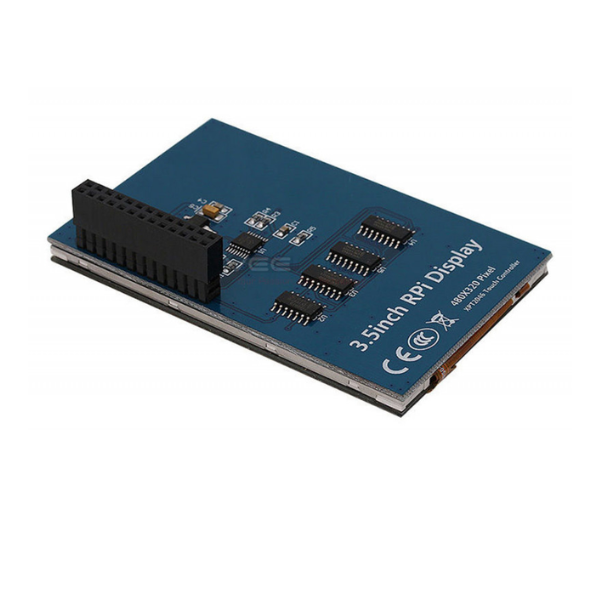

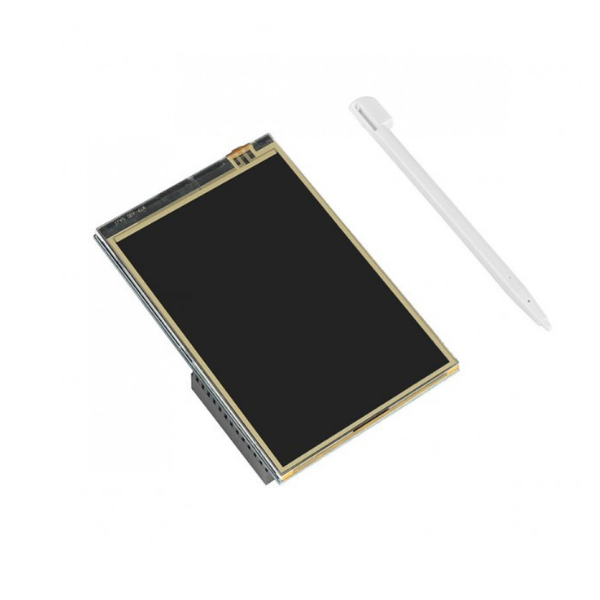

3.5 Inch Resistive Touch Screen TFT Shield 480x320 Resolution LCD For Raspberry Pi​

The TFT shield you described is designed to be used with a compatible microcontroller board, such as an Arduino. It provides a high-resolution touch screen display for various projects and applications.

Here are some key features and potential uses:

Key Features:

• 3.5 Inch Resistive Touch Screen: Enables touch-based interaction with the display.
• TFT LCD: Offers vibrant colors, high contrast, and wide viewing angles.
• 480x320 Resolution: Provides a high level of detail and clarity.
• Arduino Compatibility: Designed to work seamlessly with Arduino boards (specific models may vary).
• Backlight: Typically includes a backlight for improved visibility in various lighting conditions.
• Touch Sensitivity: Resistive touch technology allows for accurate touch detection.

Potential Uses:

• Graphical User Interfaces (GUIs): Create interactive interfaces for Arduino-based projects.
• Data Visualization: Display sensor readings, charts, and graphs.
• Gaming: Develop simple games or game prototypes.
• Educational Tools: Teach programming and electronics concepts.
• Home Automation: Control smart devices and systems through a touch interface.
• Industrial Applications: Monitor equipment status or control processes.

Additional Considerations:

• Microcontroller Compatibility: Ensure that your chosen microcontroller board is compatible with the TFT shield's interface (e.g., SPI, I2C).
• Power Supply: The shield may require additional power to drive the display and touchscreen.
• Library Support: Look for libraries or examples that simplify the integration of the TFT shield with your microcontroller.

DATA SHEET AND USECASE

Key Features:

• Display Specifications:

  • Size: 3.5 inches
  • Resolution: 480x320 pixels
  • Color Depth: 16-bit (65,536 colors)
  • Display Type: TFT LCD
  • Touchscreen: Resistive touch with XPT2046 controller

• Compatibility:

  • Supports all Raspberry Pi models, including A, B, A+, B+, 2B, 3B, 3B+, and 4B
  • Compatible with operating systems like Raspbian, Ubuntu, and Kali Linux

• Connectivity:

  • Connects via SPI interface with a maximum frequency of 125MHz

• Additional Features:

  • Provides drivers for various Raspberry Pi operating systems
  • Supports FBCP (Frame Buffer Copy) software driver for configuring software resolution and setting up dual-display setups
  • High-quality immersion gold surface plating for durability
