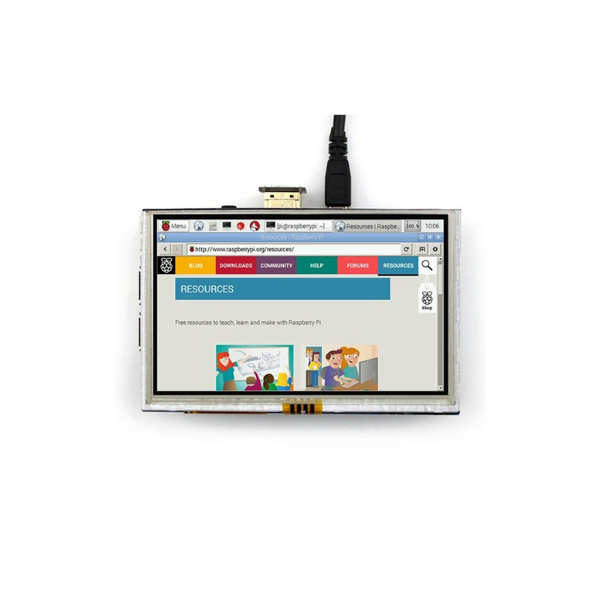

Upgrade Your Raspberry Pi with Our 5-Inch Touchscreen Display
Enhance your Raspberry Pi projects with our high-quality 5-inch touchscreen display. This versatile display offers a large viewing area and precise touch control, making it ideal for various applications.
Key Features:
- Large Display: 5-inch screen for a clear and immersive viewing experience.
- High Resolution: 800x480 pixel resolution for sharp and detailed visuals.

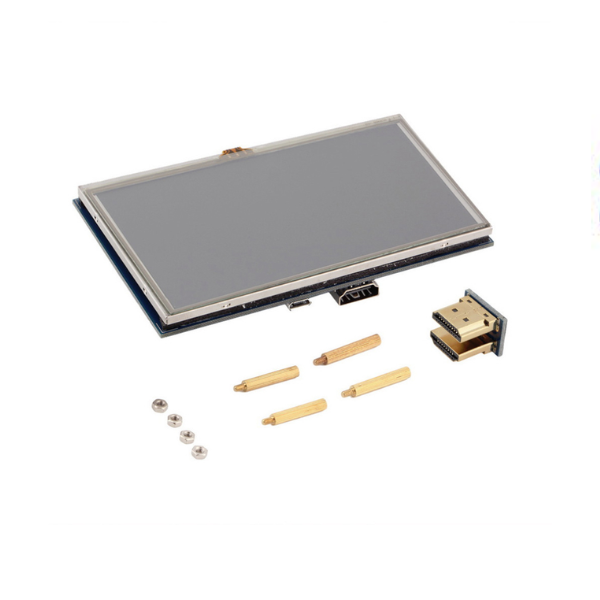

- Easy Installation: Simple setup with included stand-off screws.
- HDMI Connectivity: Seamlessly connect to your Raspberry Pi or other HDMI-enabled devices.
- Touchscreen Functionality: Precise touch control for intuitive interaction.
- Power-Saving Backlight: Control the backlight for energy efficiency.
- Versatile Interface: 13x2 pin socket for easy integration with your Raspberry Pi.
Applications:
- Raspberry Pi projects
- Home automation
- Gaming
- Digital signage
- And more!
Elevate your projects with our 5-inch touchscreen display.
DATA SHEET AND USECASE
Key Features:
Display Specifications:
- Size: 5 inches
- Resolution: 800×480 pixels
- Type: TFT LCD
- Touchscreen: Resistive touch panel
Connectivity:
- HDMI Interface: For video signal transmission
- GPIO Pins: For touch functionality and backlight control
Power Requirements:
- Voltage: 5V
- Current: Approximately 1A
Usage Instructions:
Assembly:
- Mounting the Raspberry Pi:
- Align the GPIO pins and HDMI ports of the Raspberry Pi and the display module.
- Use the provided stand-off screws to secure the Raspberry Pi onto the display board, ensuring proper alignment.
- Connecting HDMI:

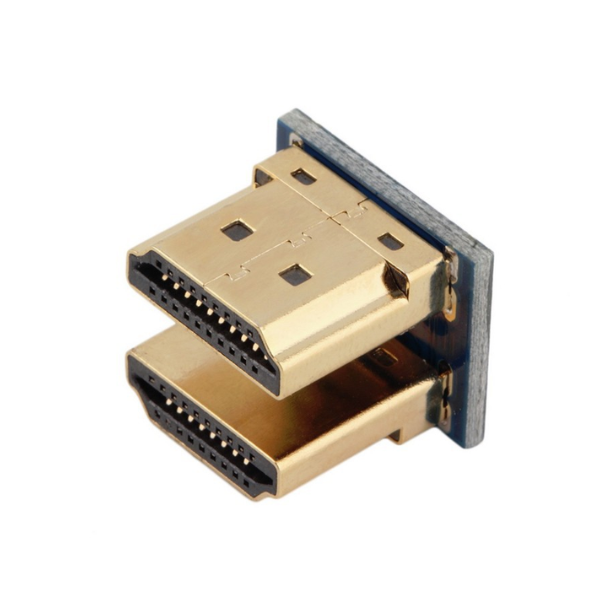

- Use the included HDMI connector to link the Raspberry Pi's HDMI port to the display's HDMI port.
- Power Supply:
- Connect the 5V power supply to the Raspberry Pi. A 2.4A power adapter is recommended to ensure sufficient power for both the Pi and the display.
- Backlight Control:
- Locate the backlight switch on the back of the display module.
- Toggle the switch to enable or disable the backlight as needed.
