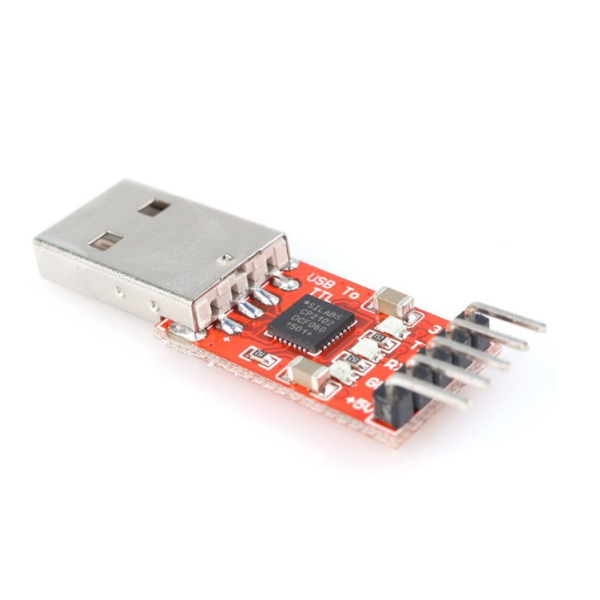

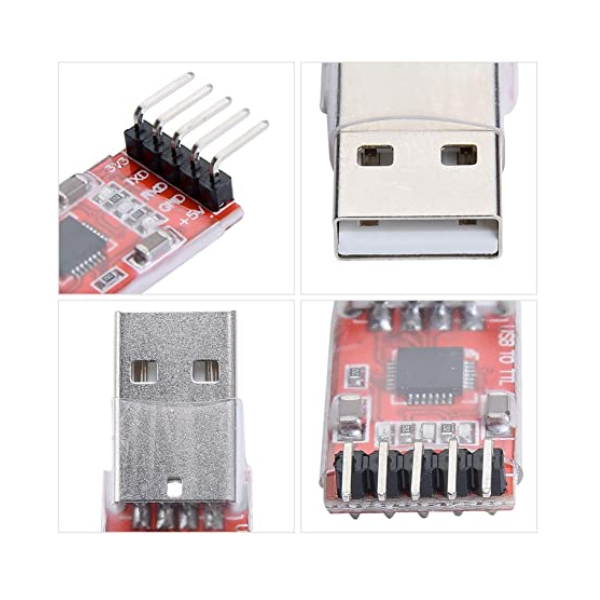

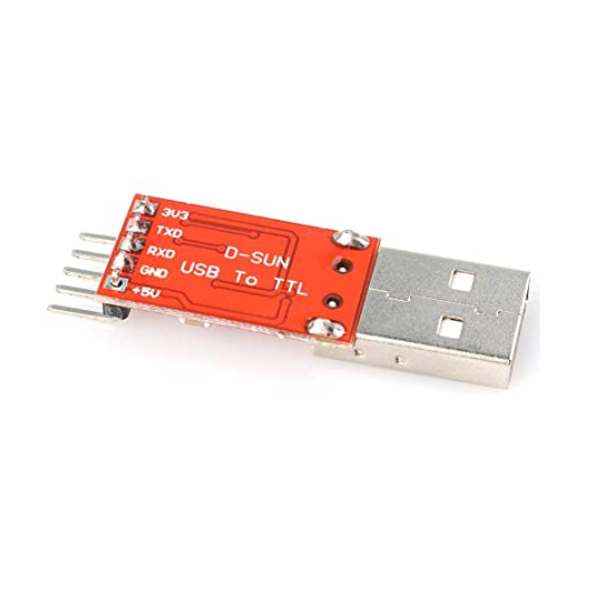

CP2102 Compatible UART 5PIN Module

CP2102 USB-UART Link: Bridge Your Arduino to the Digital World

Elevate your Arduino projects with the reliable and versatile CP2102 USB-UART Link. This powerful module provides a seamless connection between your Arduino and your computer, enabling efficient data transfer and communication.

Key Features:

• Wide Compatibility: Compatible with a variety of Arduino boards, including the Pro Mini.
• Proven Performance: Powered by the original FTDI FT232 chip for exceptional stability.
• Safety First: Built-in 500mA self-restore fuse protects against overcurrent.
• Visual Indicators: LED indicators clearly display communication status.
• Flexible Power Options: Supports both 3.3V and 5V power supply.
• Compact and Lightweight: Ideal for integration into various projects.

Specifications:

• Chipset: FTDI FT232
• USB Specification: 2.0 compliant with full-speed 12Mbps
• Connectors: USB Type A male and TTL 6-pin
• Power Supply: 3.3V or 5V
• Baud Rates: 300 bps to 1.5 Mbps
• Buffers: 640-byte transmit and receive buffers
• Temperature Range: -40°C to +85°C

Applications:

• Arduino Communication: Connect your Arduino to a computer for programming, data transfer, and debugging.
• Serial Device Interfacing: Connect serial devices to your computer for easy communication.
• DIY Projects: Integrate serial communication into your custom projects.

DATA SHEET AND USECASE

Key Features:

• Stable and Reliable Chipset: Utilizes the CP2102 chip, known for its dependable performance in serial communication applications.

• USB 2.0 Compliance: Supports full-speed 12 Mbps USB 2.0 communication, ensuring compatibility with a wide range of USB ports.

• Wide Baud Rate Support: Capable of handling baud rates from 300 bps to 1 Mbps, accommodating various communication requirements.

• Integrated USB Transceiver: Eliminates the need for external resistors, simplifying the design and reducing component count.

• On-Chip Voltage Regulator: Provides a 3.3V output, which can be used to power external circuits, enhancing versatility.
