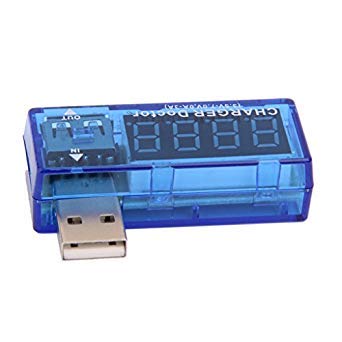

USB CURRENT VOLTAGE METER CHARGER DOCTOR

Uncover the Secrets of Your USB Power!

This compact USB power analyzer is a handy tool for anyone who needs to diagnose and troubleshoot power issues with USB devices. It provides a quick and easy way to measure various aspects of your USB power supply.

Key Features:

• Simple and Convenient: Plug and play design requires no additional power source for operation.
• Multi-faceted Analysis: Measures voltage, current, and cycle time for comprehensive power analysis.
• Pocket-Sized Portability: Compact and lightweight for effortless transport and on-the-go use.
• Wide Compatibility: Accurately measures DC voltage from 3.3V to 7.5V.
• Clear and Automatic Display: Voltage and current readings automatically appear upon connection.
• Rapid Updates: Cycle time refreshes every 5 seconds for real-time monitoring.

Ideal Applications:

• Troubleshooting: Identify and diagnose issues with chargers, cables, and USB-powered devices.
• Mobile Device Maintenance: Ensure optimal power delivery to your phone or tablet.
• DIY Projects: Verify power delivery in your electronics projects.

Note: This tester is not compatible with standard DC5V mobile phone chargers.

Specifications:

• Accuracy: Voltage ±1%, Current ≤ 2%
• Voltage Range: DC 3.3V to 7.5V
• Resolution: 10mV, 10mA

DATA SHEET AND USECASE

Key Features:

• Voltage and Current Measurement: The device can measure input voltages ranging from 3.5V to 7V DC and currents up to 3A. It alternates between displaying voltage and current readings every few seconds.

• High Resolution: It offers a resolution of 10mV for voltage and 10mA for current, ensuring precise measurements.

• Plug-and-Play Design: With its compact and portable design, the Charger Doctor requires no additional power supply. Simply plug it between a USB power source and the device to start monitoring.
