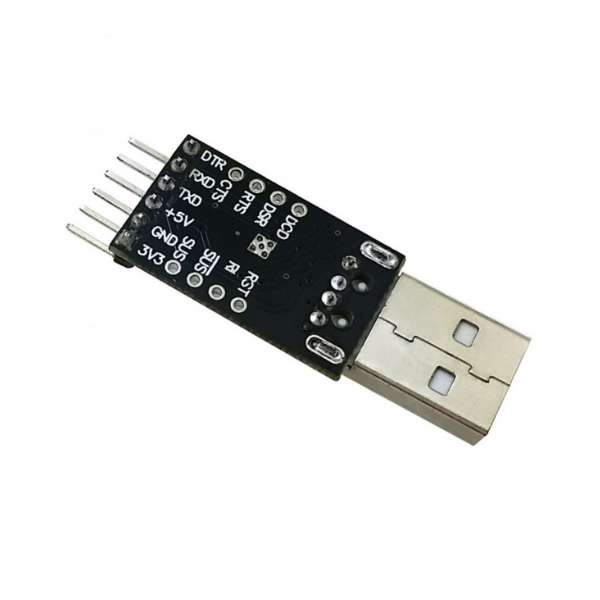

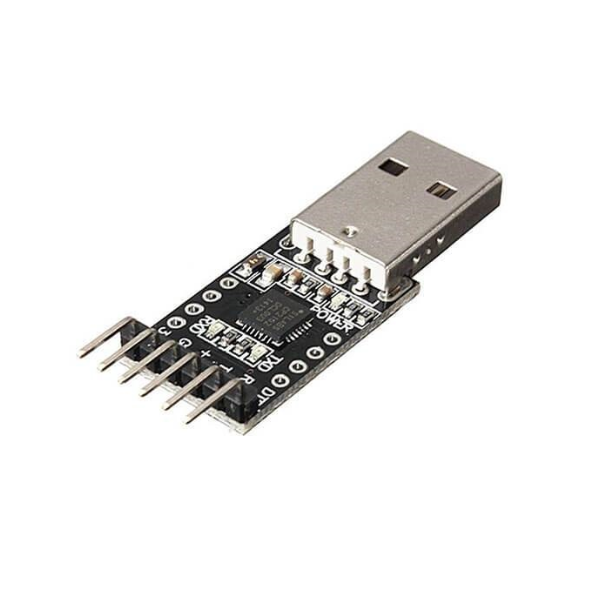

USB to UART TTL CP2102 6 Pin Module

CP2102 USB 2.0 to TTL Serial Converter Module: Bridge the Digital Divide

Streamline your microcontroller development and debugging with this versatile CP2102 USB 2.0 to TTL serial converter module. Easily connect your PC to embedded systems requiring a serial connection, enabling seamless communication and data transfer.

Key Features:

• Plug-and-Play Simplicity: Connect to your computer via USB and instantly use as a standard COM port.
• Versatile Applications: Ideal for debugging, microcontroller programming, and data transfer.
• Efficient Performance: Boasts baud rates from 300bps to 1.5 Mbps for fast and reliable communication.
• User-Friendly Design: Features a standard 0.1" pitch terminal strip for easy connection to your MCU.
• Wide Compatibility: Supports Windows, Mac OS, and Linux operating systems.

Specifications:

• Microcontroller: CP2102
• Interface: USB Type A male to TTL 6-pin
• Power Supply: Onboard voltage regulator
• Baud Rates: 300bps to 1.5 Mbps
• Buffers: 640-byte transmit, 640-byte receive
• Operating Systems: Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X, Linux 2.40

Package Includes:

• 1 x CP2102 USB to TTL Converter
• 1 x Standard 4-pin 0.1" pitch female to female cable
• 1 x Driver CD.

DATA SHEET AND USECASE

Key Features:

• USB 2.0 Full-Speed Compatibility: Ensures reliable and efficient data transfer rates.

• Integrated USB Transceiver: Eliminates the need for external components, simplifying design and reducing cost.

• Onboard Voltage Regulator: Provides both 3.3V and 5V power outputs, offering flexibility for various applications.

• LED Indicators: Includes power, data reception, and data transmission indicators to monitor module status.

• Self-Recovery Fuse: Protects the computer's USB port by preventing damage in case of accidental short circuits.
