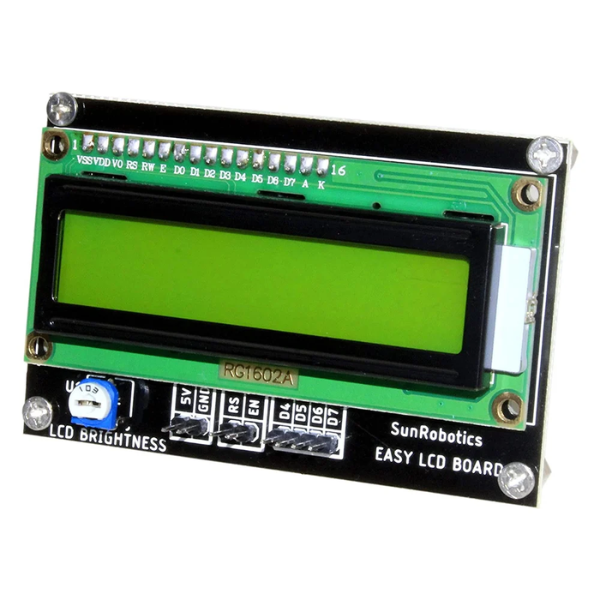

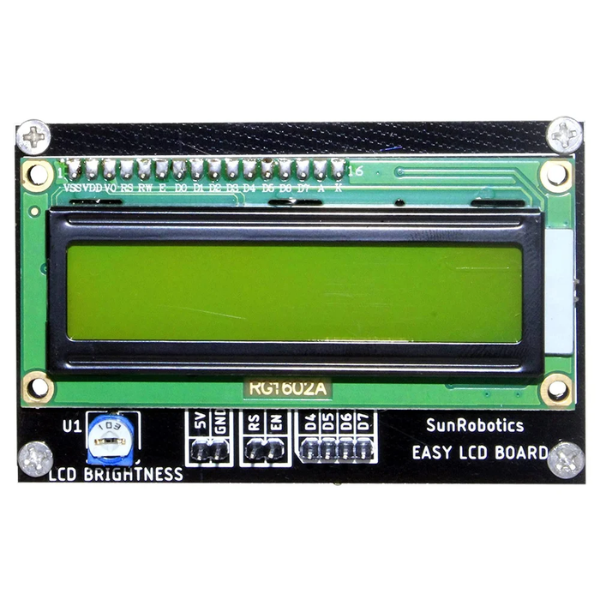

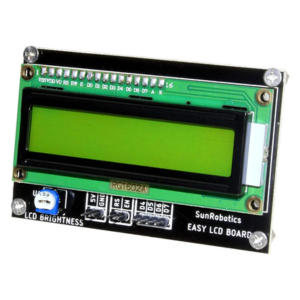

Easy LCD Board

The "Easy LCD Board" is a popular choice for beginners and hobbyists who want to add a small, easy-to-use LCD display to their Arduino or other microcontroller projects. It typically features a 16x2 character display with a built-in HD44780 compatible controller, making it simple to interface with most microcontrollers.

Key Features:

• 16x2 Character Display: Provides ample space for displaying text and information.
• Built-in HD44780 Controller: Simplifies the wiring and programming process.
• Backlight: Often includes a backlight for improved visibility in low-light conditions.
• Power Supply: Typically requires a 5V power supply.
• Easy to Use: Straightforward wiring and programming instructions make it accessible for beginners.

Applications:

• Arduino and Microcontroller Projects: Display sensor readings, messages, or other information.
• DIY Projects: Add a visual interface to your custom creations.
• Educational Purposes: Teach electronics and programming concepts.

Popular Brands and Models:

• Adafruit 16x2 Character LCD Display: A well-known and reliable option.
• SparkFun LCD Display: Another popular choice with a variety of options.
• Generic 16x2 LCD Modules: Many generic versions are available at lower prices.

Additional Considerations:

• Interface: Some Easy LCD Boards may have different interfaces (e.g., parallel or I2C). Be sure to check the specifications to ensure compatibility with your microcontroller.
• Backlight Color: Backlights can be available in different colors (e.g., blue, green, white). Choose the one that best suits your project needs.
• Power Consumption: Consider the power consumption of the LCD board, especially if you're using battery-powered devices.

DATA SHEET AND USECASE

Easy LCD Interface (ELI) by Future Designs Inc.:

Description: The ELI is designed to simplify the integration of LCDs with Single Board Computers (SBCs) like Raspberry Pi and BeagleBone Black. It offers plug-and-play solutions ranging from 4.3" to 15.0" displays, supporting various operating systems including Linux and Windows.

Use: Ideal for users seeking a straightforward method to connect SBCs to LCDs without extensive hardware design.

Simplified LCD Breakout Board for Arduino:

Description: This custom board streamlines the connection between Arduino boards and LCDs, offering easy contrast and backlight control.

Use: Useful for Arduino enthusiasts aiming to simplify wiring and enhance control over LCD displays in their projects.

LCD Board by Embedded Artists:

Description: This board supports 16- and 12-bit color depths and is compatible with various NXP processors. It facilitates the connection of TFT LCDs to development boards, providing a user-friendly interface for display integration.

Use: Suitable for developers working with NXP processors who require an efficient solution for integrating TFT LCDs into their designs.
