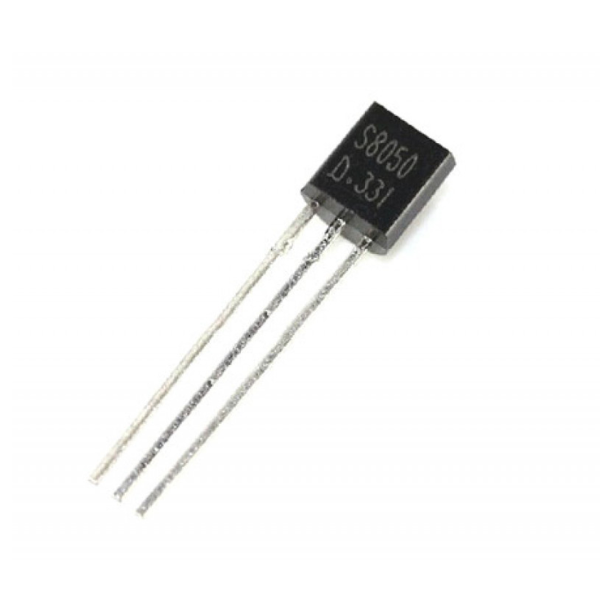

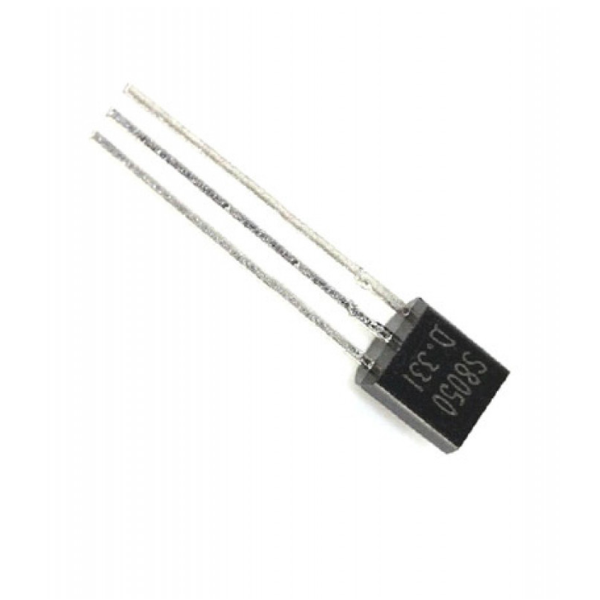

S8050 NPN General Purpose Transistor 20V 700mA TO-92 Package Pack 50

Description:

The S8050 is a versatile NPN transistor designed for a wide range of electronic applications. Its reliable performance and high power handling capabilities make it ideal for amplification, switching, and other circuit functions.

Key Features:

• Easy to handle: Convenient TO-92 package.
• Simple drive requirements: Easy to control with minimal input signal.
• High safe operating area: Handles a wide range of operating conditions.
• Low saturation voltage: Minimizes power dissipation in switching applications.
• Complementary design: Ideal for use with PNP transistors in push-pull amplifiers.

Applications:

• Switches
• Amplifiers
• Oscillators
• Motor control
• Power supplies
• Voltage regulators
• Industrial electronics

DATA SHEET AND USECASE

Key Specifications:

• Power Dissipation (P_C): 1W​
• Collector Current (I_C): 700mA​
• Emitter-Base Voltage (V_EBO): 5V​
• Collector-Base Voltage (V_CBO): 30V​
• Collector-Emitter Voltage (V_CEO): 20V​
• Transition Frequency (f_T): Approximately 100MHz
• DC Current Gain (h_FE): Typically ranges from 100 to 400, depending on the operating conditions​
