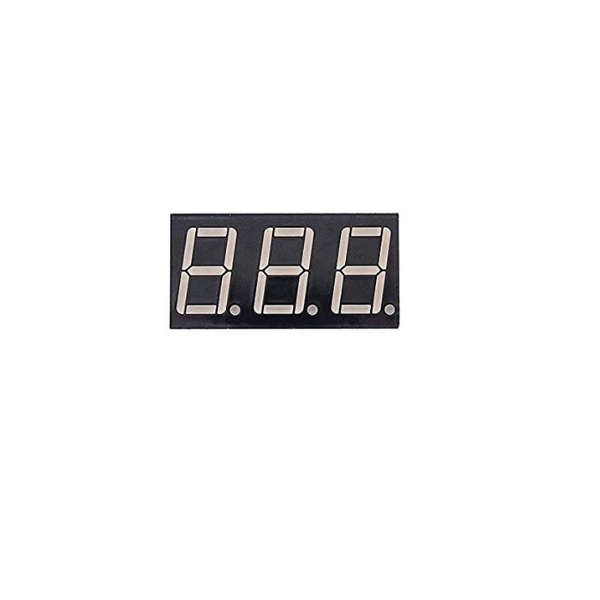

0.56 Inch Red 3-Digit 7 Segment LED Display CA Pack 4

The 0.56 Inch Red 3-Digit 7 Segment LED Display CA Pack 4 is a package of four high-quality red LED displays, each displaying three digits from 0 to 9. These displays are commonly used in various electronic projects and devices to display numerical information.

Key Features:

• 3-Digit Display: Displays numbers from 0 to 999.
• 0.56 Inch Character Height: Provides good visibility and readability.
• Red LED Illumination: Emits bright red light for clear display in various lighting conditions.
• Common Cathode (CA) Configuration: Simplifies wiring by connecting all cathodes together.
• High Brightness: Offers high brightness and luminous intensity, ensuring visibility in different lighting conditions.
• Durable Construction: Designed for long-lasting performance and reliability.
• Versatile Applications: Suitable for a wide range of applications, including digital clocks, counters, meters, and electronic devices.
• Pack of 4: Comes in a pack of four, providing a convenient quantity for various projects.

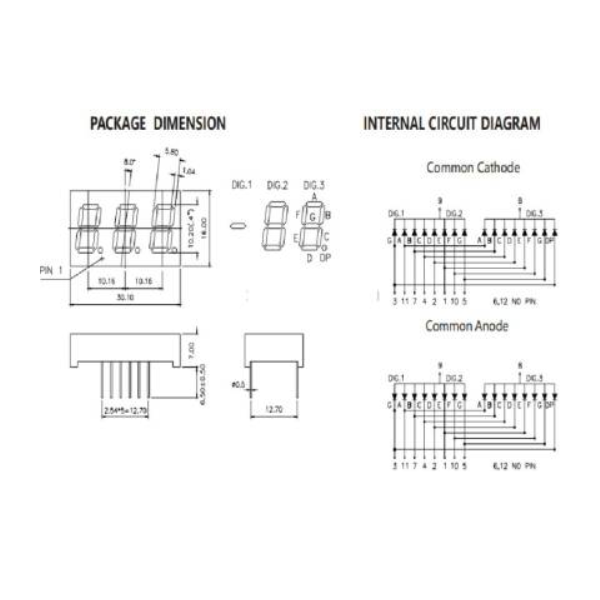

DATA SHEET AND USECASE

Common Applications:

These displays are widely utilized in devices that require clear numerical readouts, such as:

• Digital Clocks: Displaying time in hours and minutes.
• Electronic Meters: Indicating measurements like voltage, current, or frequency.
• Basic Calculators: Showing input numbers and calculation results.
• Home Appliances: Providing settings or status information in microwaves, washing machines, and air conditioners.

Technical Specifications:

While specific parameters can vary by manufacturer, typical specifications include:

• Digit Height: 14.2 mm (0.56 inches).
• Forward Voltage (V_F): Approximately 2V per segment.
• Forward Current (I_F): Up to 20 mA per segment.
• Wavelength: Around 640 nm, corresponding to red light.
• Common Anode Configuration: All anodes of the LED segments are connected together.
