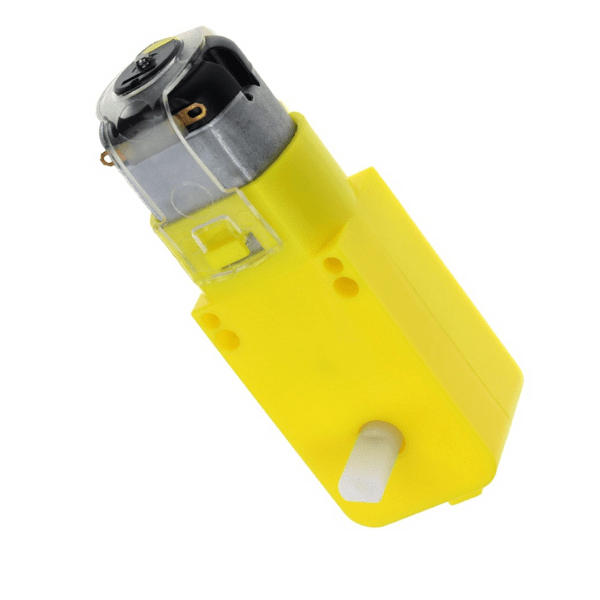

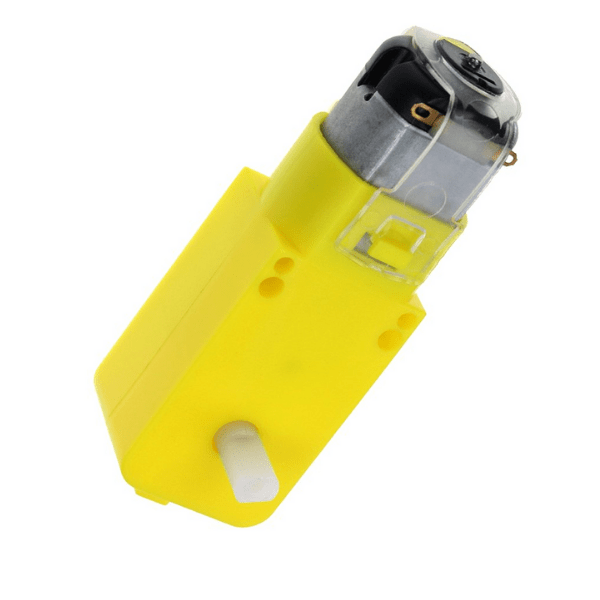

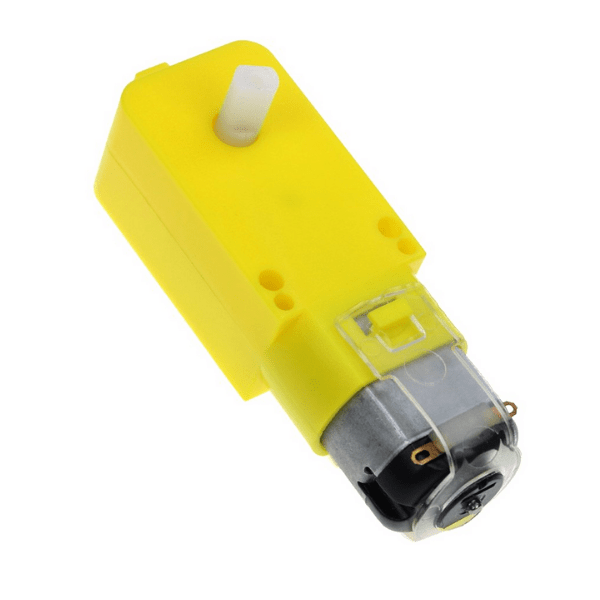

BO motor 100RPM Straight Single Shaft 3 to 12V For Building Robots & Robot Cars

1. Rated Torque: 1 Kgcm
2. Rated Speed(After Reduction): 100 RPM
3. Operating Voltage(VDC): 3~12
4. No Load Current: 40-180mA.

Description:

This is a BO 100RPM DC Motor Plastic Motor. The BO series straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.

A small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & lightweight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.

Features:

• Rated Torque : 1 Kgcm

• Rated Speed (After Reduction) : 100 RPM

• Operating Voltage (VDC) : 3~12

• No Load Current : 40-180mA.

• Capability to absorb shock and vibration as a result of elastic compliance.

• Ability to operate with minimum or no lubrication, due to inherent lubricity.

• The relatively low coefficient of friction.

Package Includes:

• 1 x BO motor 100RPM Straight Single Shaft 3 to 12V for building robots & robot cars
