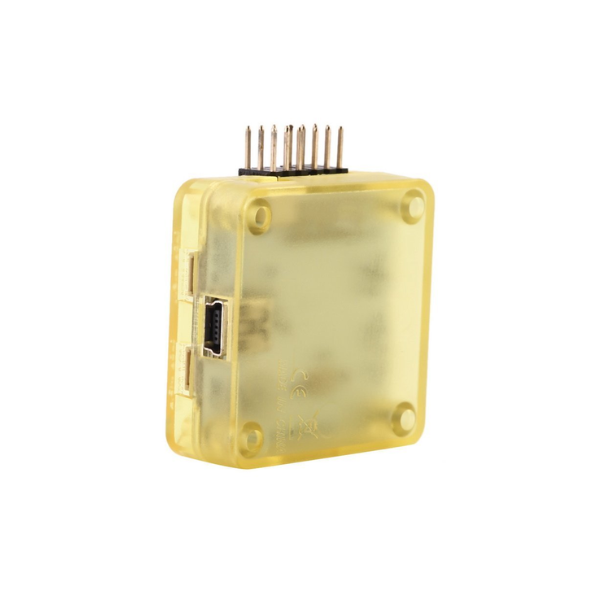

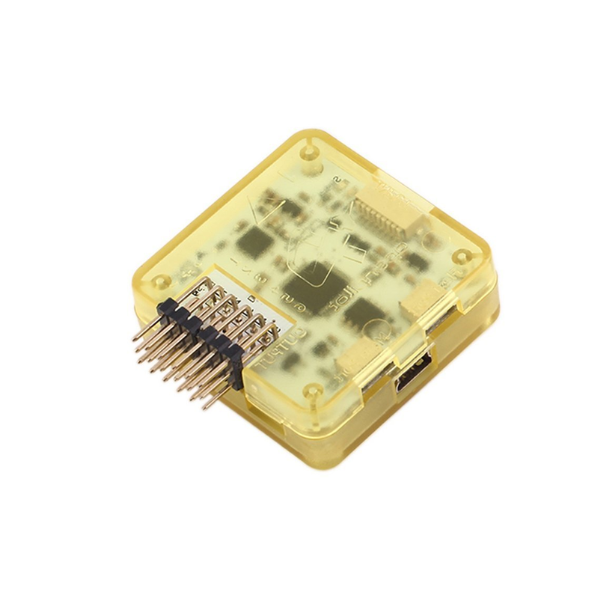

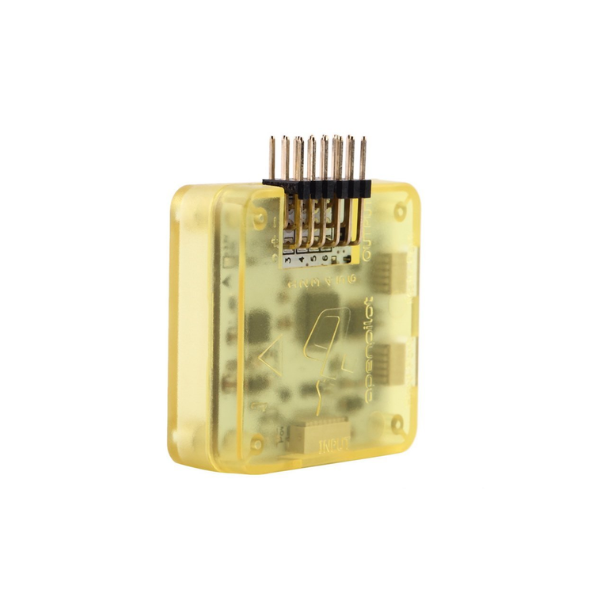

Openpilot cc3d flight controller

Description:

The Open Pilot CC3D is a popular flight controller board used in multirotor and fixed-wing aircraft. It's designed to provide stable and responsive flight performance, making it a great choice for both beginners and experienced pilots.

Key Features:

• Powerful Microcontroller: Equipped with a high-performance STM32 microcontroller for efficient processing.
• Inertial Measurement Unit (IMU): Includes a 3-axis gyroscope and accelerometer for accurate orientation sensing.
• Flexible Configuration: Customizable flight modes and parameters to suit different flying styles and aircraft types.
• Open-Source Firmware: Based on the Open Pilot firmware, allowing for community-driven development and customization.
• Compact Design: Small and lightweight, making it easy to integrate into various aircraft designs.

Applications:

• Multirotor Drones: Quadcopters, hexa-copters, and octocopters.
• Fixed-Wing Aircraft: Planes and gliders.
• Aerial Photography and Videography: Capturing stunning aerial footage.
• Racing Drones: High-speed and agile racing drones.
• Search and Rescue Operations: Deploying drones for search and rescue missions.

DATA SHEET AND USECASE

Key Specification:

• Processor: 32-bit STM32 microcontroller running at 90 MIPS, with 128KB Flash memory and 20KB RAM.
• Sensors: 3-axis high-performance MEMS gyroscopes and 3-axis high-performance MEMS accelerometer.
• Dimensions: Compact 36mm x 36mm 4-layer PCB, ensuring reduced electrical noise and enhanced flight performance.
• Connectivity: Onboard USB for easy configuration, with support for various receiver inputs, including PWM, PPM, Spektrum/JR satellites, and Futaba S.Bus.

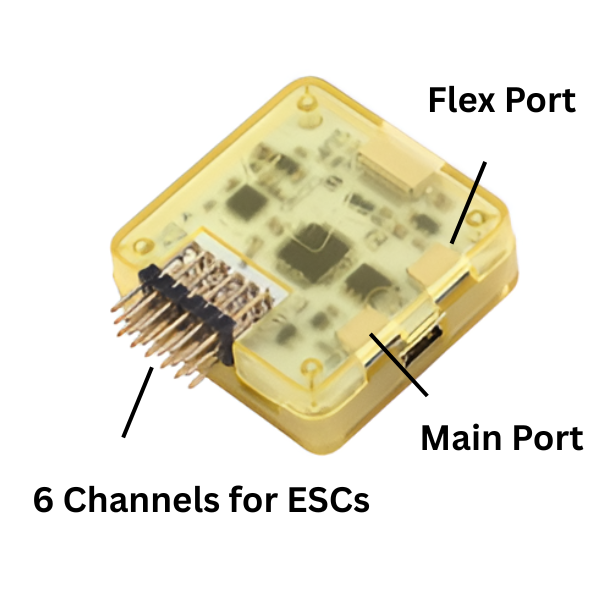

• Flexi-port Technology: Offers additional port flexibility, allowing for I2C connectivity or a second serial port.
