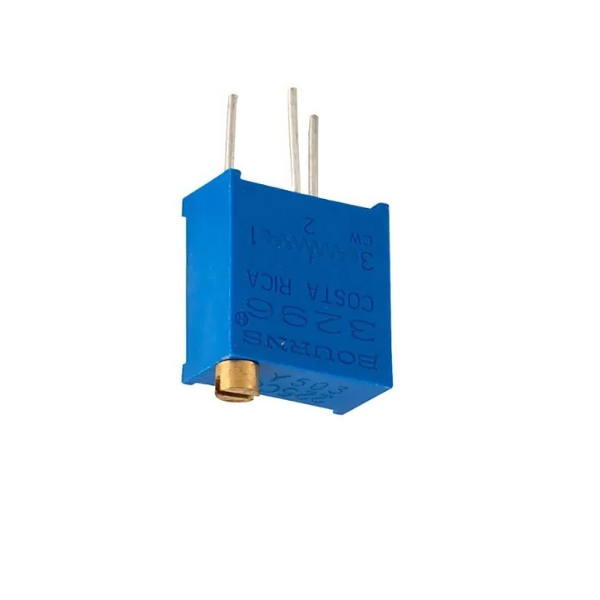

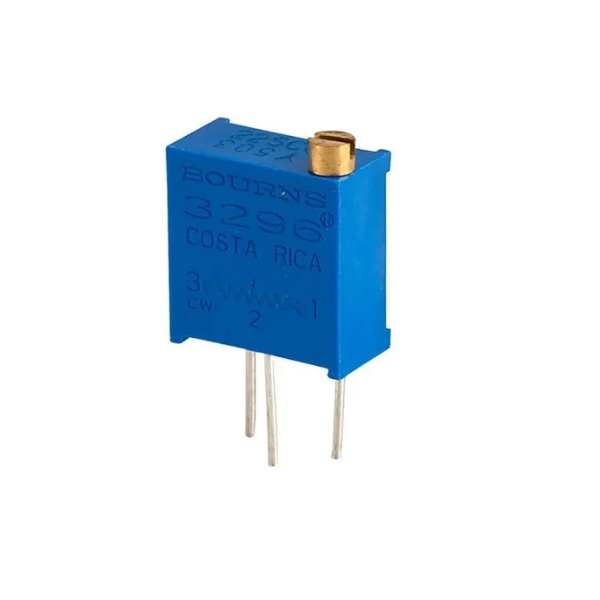

100k Multiturn Trimmer Trim-pot 3296W

Description:

Enhance your circuit designs with the Bourns 3296W trimpot trimmer potentiometer. This high-precision component offers exceptional performance and durability for a wide range of applications.

Key Features:

• Accurate Resistance: 100k Ohm resistance for precise control over your circuits.
• Temperature Stability: ±100 ppm/ºC temperature coefficient ensures reliable operation in varying environments.
• Wide Operating Range: -55ºC to +125ºC for compatibility with demanding projects.
• Multiturn Design: 25 turns for fine-grained adjustments and a rotational life of 200 cycles for long-term reliability.
• Easy Installation: Through-hole mounting and side or top adjustment with a lead screw for convenient setup.
• Versatile Applications: Ideal for measuring linear distance, angle, or rotation in production equipment, as well as various circuit adjustments.

Package Includes:

• 4 x 100k Ohm multiturn trimmer potentiometers (3296W)

DATA SHEET AND USECASE

Key Specifications:

• Resistance: 100 kΩ
• Tolerance: ±10%
• Power Rating: 0.5W at 70°C
• Adjustment Turns: 25 turns for fine-tuning
• Temperature Coefficient: ±100 ppm/°C
• Operating Temperature Range: -55°C to +125°C
• Mounting Type: Through-hole with top adjustment
• Dimensions: Approximately 9.53 mm x 9.53 mm x 4.83 mm
