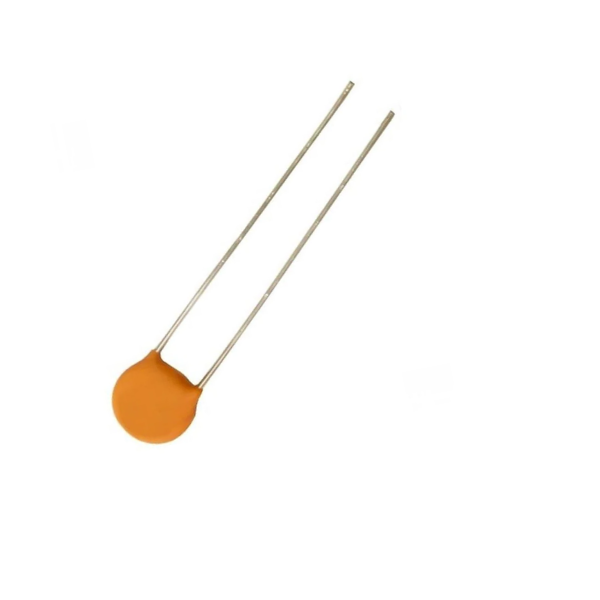

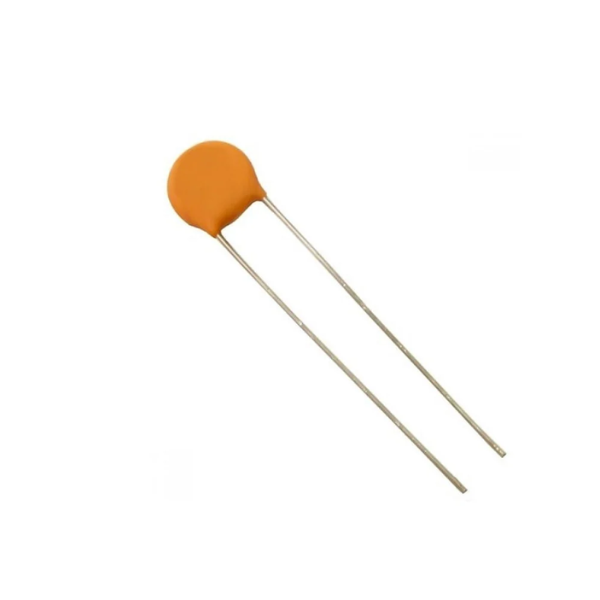

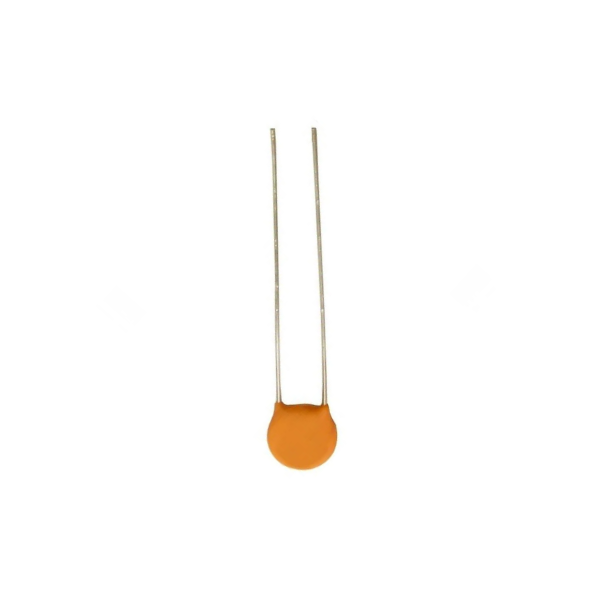

Pulsevo 100pF Ceramic Disc Capacitor (10-Pack)
Enhance your electronic projects with the Pulsevo 100pF Ceramic Disc Capacitor. This versatile component offers reliable performance and exceptional stability for various applications.
Key Features:
- Non-Polarized Design: Can be used in both AC and DC circuits.
- Wide Operating Temperature: Functions reliably from -55°C to +85°C.
- Essential Capacitance Value: 100pF is a commonly used value for various electronic circuits.
- Compact and Durable: Ceramic disc design for easy integration and long-lasting performance.
Applications:
- Timing circuits
- Noise reduction
- Power decoupling
- General-purpose electronic circuits
Specifications:
- Tolerance: ±10%
- Capacitance: 100pF
- Voltage Rating: 50V
- Type: Ceramic Capacitor
- Mounting Type: Through Hole
- Package: Tape and Reel (10-Pack)
DATA SHEET AND USECASE
Key Specifications:
- Capacitance: 100pF
- Voltage Rating: 50V
- Tolerance: Typically ±10% or ±20%
- Dissipation Factor (tan δ): Y5P: ≤2.5%; Z5V: ≤5%
- Operating Temperature Range: Y5P: -30°C to +85°C; Z5V: +10°C to +85°C
- Insulation Resistance: Minimum of 10,000MΩ or 200MΩ/μF, whichever is smaller
- Temperature Coefficient: Commonly Y5P or Z5V, indicating the capacitor's capacitance stability over temperature changes
