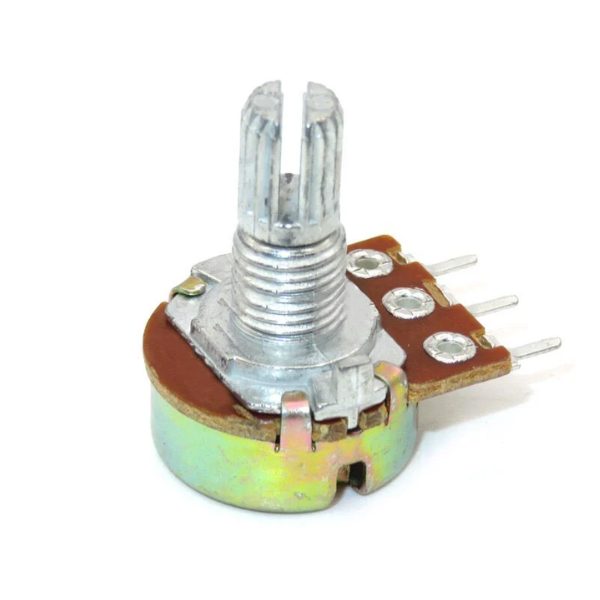

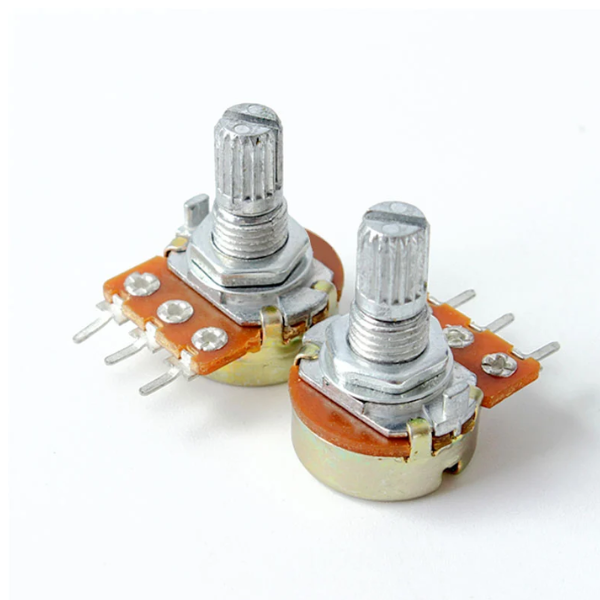

100K Linear Rotary Potentiometer

100K Ohm Single-Turn Rotary Potentiometer (3-Pin)

Elevate your electronic projects with our high-quality 100K ohm rotary potentiometers. These versatile components offer precise resistance control and durability for various applications.

Key Features:

• Resistance: 100,000 ohms
• Power Rating: 0.3 watts
• Maximum Input Voltage: 200 volts DC
• Rotational Life: 2,000,000 cycles
• Rotation: 270 degrees
• Mounting Type: Through-hole
• Material: High carbon steel

Applications:

• Audio Equipment: Control volume, tone, and other settings.
• Industrial Controls: Adjust system parameters for optimal performance.
• Test Equipment: Provide precise resistance values for calibration and testing.
• DIY Electronics: Experiment and create custom electronic projects.

Benefits:

• Precision: Offers accurate resistance adjustments.
• Durability: Built with high-quality materials for long-term use.
• Versatility: Suitable for a wide range of electronic applications.
• Easy Mounting: Can be soldered onto PCBs.
• Compact Size: Small footprint for easy integration into projects.

Specifications:

• Resistance: 100K ohms
• Power Rating: 0.3 watts
• Maximum Input Voltage: 200 volts DC
• Rotation: 270 degrees
• Mounting Type: Through-hole
• Package: 3-pack

Conclusion:

The 100K ohm single-turn rotary potentiometer is an essential component for electronic projects requiring precise resistance control. Its versatility, durability, and compact size make it a popular choice for engineers, hobbyists, and professionals alike.

DATA SHEET AND USECASE

Key Specifications:

• Resistance Value: 100KΩ
• Taper: Linear (B-type), indicating a direct correlation between rotation angle and resistance change
• Power Rating: Typically 0.25W (250mW) to 0.5W (500mW), depending on the specific model
• Shaft Type: Commonly features a knurled or flatted shaft for easy knob attachment
• Mounting Style: Panel mount with solder lug terminals
