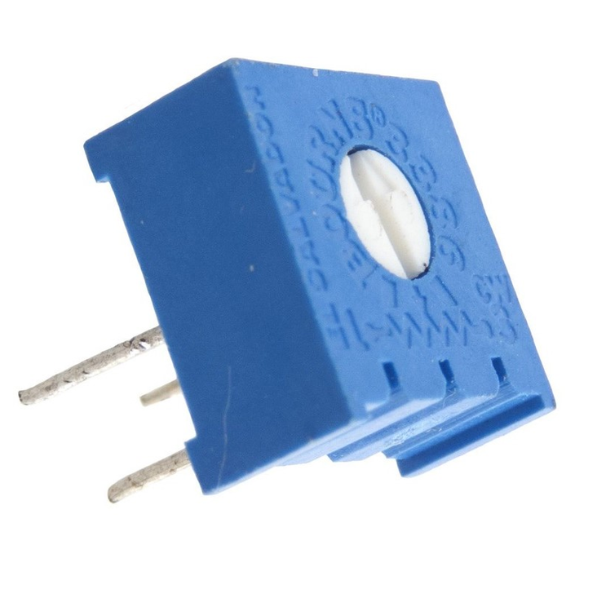

10k Ohm Variable Resistor (3386 Package) - Trim-pot Pack 5

Description:

Enhance your circuit designs with our high-quality 10k Ohm trimpot trimmer potentiometer. This versatile component, featuring a compact 3386 package, offers precise resistance adjustment for a wide range of applications.

Key Features:

• Accurate Resistance: 10k Ohm with a ±10% tolerance for reliable performance.
• Temperature Stability: ±100 ppm/ºC temperature coefficient ensures consistent operation across varying environments.
• Wide Operating Range: -55ºC to +125ºC for compatibility with demanding projects.
• Easy Installation: PCB-mountable design and side or top adjustment with a lead screw for convenient setup.
• Versatile Applications: Ideal for measuring displacement, adjusting circuit parameters, and more.

Package Includes:

• 5 x 10k Ohm variable resistors (3386 package)

DATA SHEET AND USECASE

Key Specifications:

• Resistance Value: 10kΩ (denoted as "103")
• Adjustment Type: Single-turn, top or side adjustment options
• Power Rating: 0.5W (½ Watt)
• Tolerance: ±10%
• Temperature Coefficient: ±100ppm/°C
• Operating Temperature Range: -55°C to +125°C
• Mounting Style: Through-hole with PC pins
• Dimensions: Approximately 9.53mm x 9.53mm x 4.83mm

Applications:

Trimpots like the 3386 series are utilized in various applications, including:

• Calibration: Adjusting circuit parameters to achieve desired performance.
• Offset Adjustment: Setting zero points in operational amplifiers and sensors.
• Voltage Division: Creating adjustable voltage dividers for reference voltages.
• Frequency Tuning: Fine-tuning oscillators and filters in communication devices.
• Sensitivity Adjustment: Modifying sensor sensitivity in measurement instruments.
