1N5817 Diode - Schottky 20 V 1A Through Hole DO-41 Pack 10

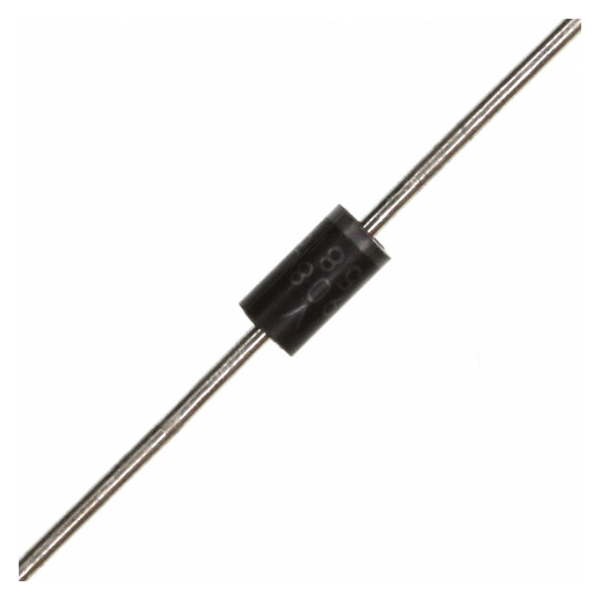

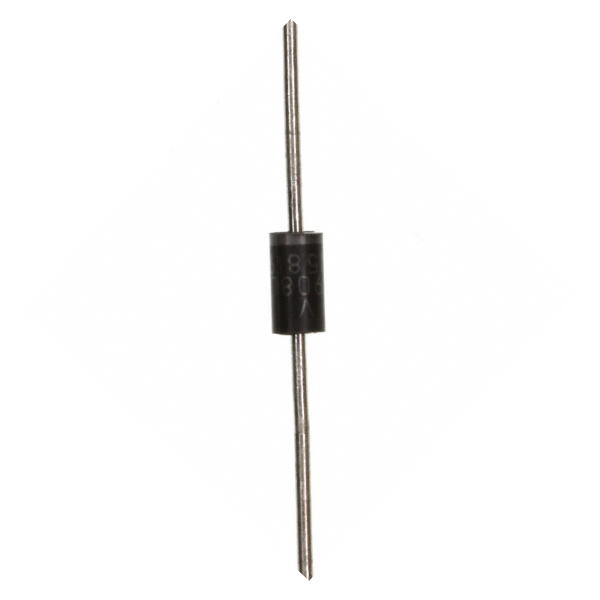

1N5817 Schottky Barrier Rectifier Diode (10-Pack)

Enhance your electronic circuits with the 1N5817 Schottky Barrier Rectifier Diode. This high-performance component is ideal for applications requiring speed, efficiency, and reliability.

Key Features:

• Compact Size: Easy to integrate into your designs.
• High Current Capability: 1A average rectified forward current.
• Rugged Construction: Built to withstand demanding operating conditions.
• Fast Switching Speed: Ideal for high-frequency applications and switching circuits.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.

Applications:

• Inverters
• DC-DC converters
• Motor control circuits
• Switching power supplies
• High-frequency rectification

Specifications:

• Package: DO-41
• Reverse Voltage : 20V
• Mounting: Through Hole
• Max. Reverse Current : 1µA
• Reverse Recovery Time : 5ns
• Type: Schottky Rectifier Diode
• Average Rectified Current : 1A
• Max. Forward Voltage Drop : 0.45V
• Operating Junction Temperature Range: -65°C to +150°C

DATA SHEET AND USECASE

Key Features and Specifications:

• Forward Current (IF): Rated at 1.0 ampere.​
• Reverse Voltage (VR): Capable of withstanding up to 20 volts.​
• Package Type: Encased in a DO-41 axial lead package, facilitating easy through-hole mounting.
• Forward Voltage Drop (VF): Typically around 0.45 volts at 1A, which minimizes power loss and enhances efficiency.​
