1N5822 Schottky Barrier Diode 3A 40V,Through Hole DO-41 Pack 20

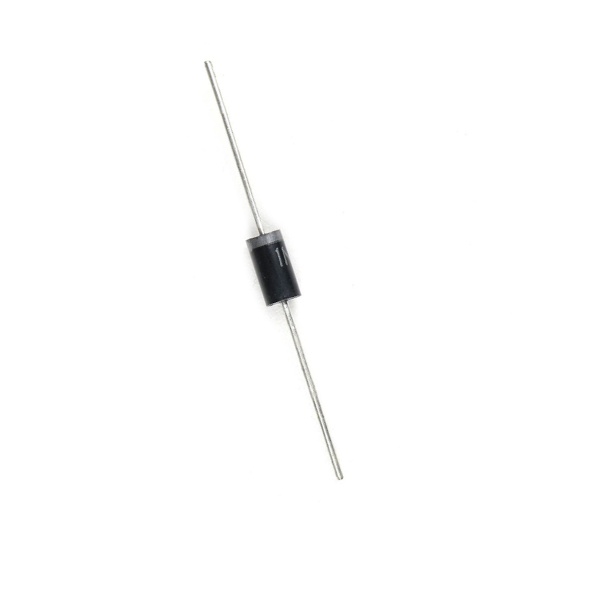

1N5822 Schottky Barrier Rectifier Diode (20-Pack)

Enhance your electronic circuits with the 1N5822 Schottky Barrier Rectifier Diode. This high-performance component is ideal for applications requiring speed, efficiency, and reliability.

Key Features:

• Compact Size: Easy to integrate into your designs.
• High Current Capability: 3A average rectified forward current.
• Rugged Construction: Built to withstand demanding operating conditions.
• Fast Switching Speed: Ideal for high-frequency applications and switching circuits.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.

Applications:

• Inverters
• DC-DC converters
• Motor control circuits
• Switching power supplies
• High-frequency rectification

Specifications:

• Package: DO-214AC
• Mounting: Through Hole
• Type: Schottky Rectifier Diode
• Reverse Voltage (VRRM): 40V
• Max. Reverse Current (Ir): 1µA
• Reverse Recovery Time (Trr): 5ns
• Average Rectified Current (Io): 3A
• Max. Forward Voltage Drop (Vf): 0.45V
• Operating Junction Temperature Range: -65°C to +150°C

DATA SHEET AND USECASE

Key Specifications:

• Package Type: DO-201AD (Axial lead)​
• Low Forward Voltage Drop: Typically 0.475 V at 3 A​
• Maximum Repetitive Peak Reverse Voltage (V_RRM): 40 V​
• Maximum Average Forward Rectified Current (I_F(AV)): 3.0 A​
