1N5819 SOD123 (1206) 1A 40V Schottky Diode by INC Pack 5

1N5819W Schottky Barrier Rectifier Diode (5-Pack)

Enhance your electronic circuits with the 1N5819W Schottky Barrier Rectifier Diode. This high-performance component is ideal for applications requiring speed, efficiency, and reliability.

Key Features:

• Compact Size: Easy to integrate into your designs.
• High Current Capability: 1A average rectified forward current.
• Rugged Construction: Built to withstand demanding operating conditions.
• Fast Switching Speed: Ideal for high-frequency applications and switching circuits.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.

Applications:

• Inverters
• DC-DC converters
• Motor control circuits
• Switching power supplies
• High-frequency rectification

Specifications:

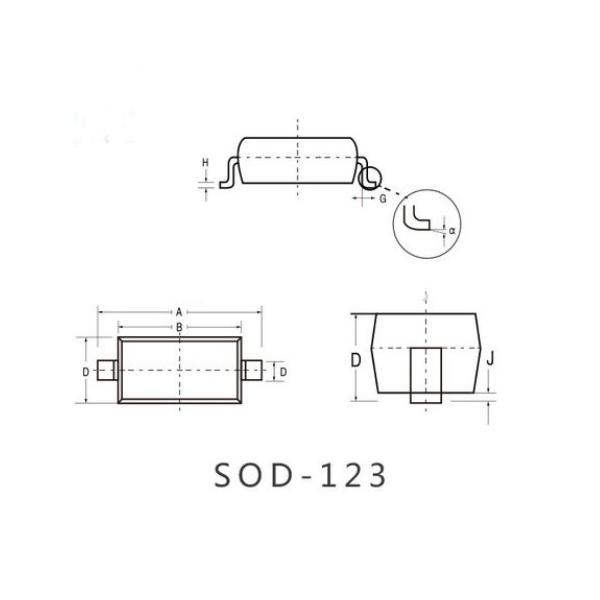

• Package: SOD-123
• Mounting: Surface Mount
• Type: Schottky Rectifier Diode
• Reverse Voltage (VRRM): 40V
• Max. Reverse Current (Ir): 1µA
• Average Rectified Current (Io): 1A
• Reverse Recovery Time (Trr): 5ns
• Max. Forward Voltage Drop (Vf): 0.9V
• Operating Junction Temperature Range: -65°C to +150°C

DATA SHEET AND USECASE

Key Features:

• Fast Switching Speed: Ideal for high-frequency applications.​
• High Surge Capability: Can withstand surge currents up to 25A.​
• Low Forward Voltage Drop: Typically around 0.3V, which reduces power loss and enhances efficiency.​
• Surface-Mount Package: The SOD-123 package facilitates automated assembly and is suitable for compact designs.​
