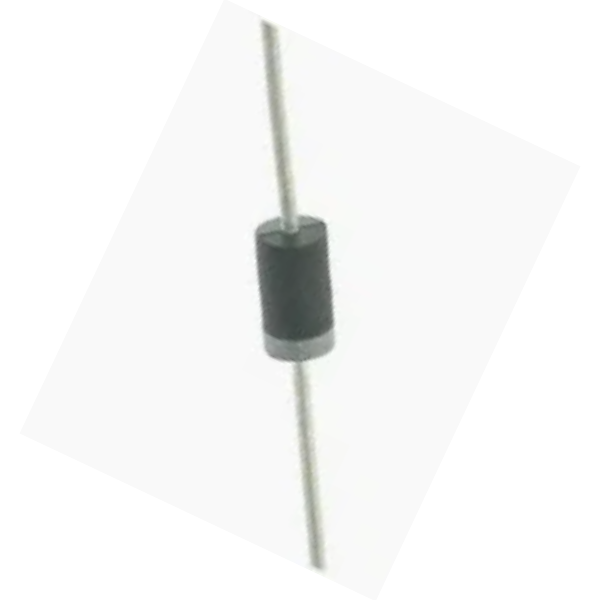

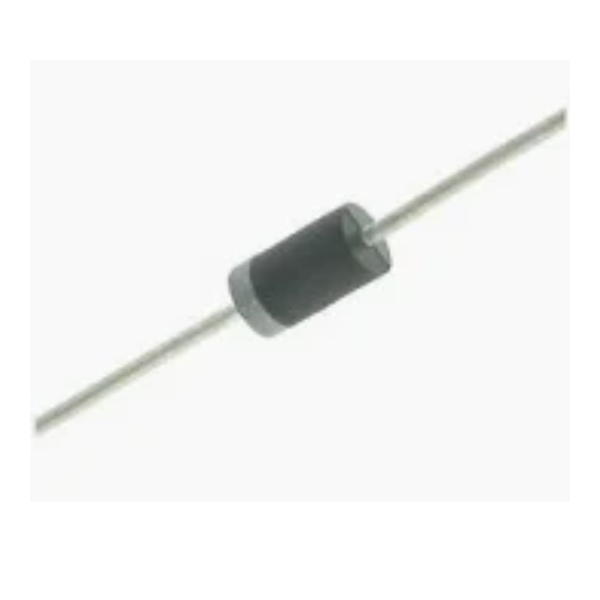

1N821 Zener Diode Pack 10

 1N821 6.2V Zener Diode (10-Pack)

Enhance your electronic circuits with the 1N821 6.2V Zener Diode. This reliable component is ideal for a wide range of applications requiring precise voltage regulation and protection.

Key Features:

• Nominal Zener Voltage: 6.2V for stable voltage references.
• Compact Design: DO-35 package for space-saving installation.
• Through-Hole Mounting: Easy integration into your circuit board.
• High Power Dissipation: 500mW for handling demanding applications.
• Temperature Compensated: Maintains stable zener voltage over a wide temperature range.

Applications:

• Clipper circuits
• Reference circuits
• Voltage regulation
• Switching applications
• Overvoltage protection

Specifications:

• Test Current: 5mA
• Package Type: DO-35
• Nominal Zener Voltage: 6.2V
• Mounting Type: Through Hole
• Zener Voltage Tolerance: ±5%
• Maximum Zener Impedance: 60Ω
• Maximum Power Dissipation: 500mW

DATA SHEET AND USECASE

Key Specifications:

• Test Current : 7.5 mA​
• Nominal Zener Voltage : 6.2 V​
• Power Dissipation: 500 mW at 50°C​
• Maximum Zener Impedance : 10 Ω at 7.5 mA​
• Maximum Reverse Leakage Current : 2 µA at 3 V​
• Operating Temperature Range: -65°C to +175°C
