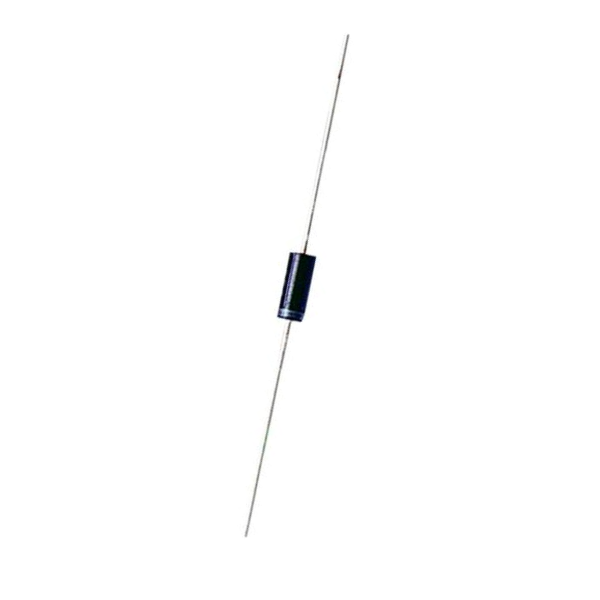

1N821 Zener Single Diode, 6.2 V, 500 MW, DO-204AA, 2 Pins, Through Hole Pack 50

 1N821 6.2V Zener Diode (50-Pack)

Enhance your electronic circuits with the 1N821 6.2V Zener Diode. This reliable component is ideal for a wide range of applications requiring precise voltage regulation and protection.

Key Features:

• Nominal Zener Voltage: 6.2V for stable voltage references.
• Through-Hole Mounting: Easy integration into your circuit board.
• Compact Design: DO-204AA package for space-saving installation.
• High Power Dissipation: 500mW for handling demanding applications.
• Temperature Compensated: Maintains stable zener voltage over a wide temperature range.

Applications:

• Clipper circuits
• Reference circuits
• Voltage regulation
• Overvoltage protection
• Switching applications

Specifications:

• Test Current: 5mA
• Package Type: DO-204AA
• Nominal Zener Voltage: 6.2V
• Mounting Type: Through Hole
• Zener Voltage Tolerance: ±5%
• Dimensions: 4.25 x 1.85 x 1.85mm
• Maximum Zener Impedance: 60Ω
• Maximum Power Dissipation: 500mW
• Maximum Reverse Leakage Current: 2µA
• Operating Temperature Range: -65°C to +200°C
• Typical Voltage Temperature Coefficient: -0.8mV/°C

DATA SHEET AND USECASE

Key Features:

• Power Dissipation: 500 mW​
• Nominal Zener Voltage: 6.2 V​
• Package: DO-35 (DO-204AH) hermetically sealed glass with corrosion-resistant tin-plated leads.
• Temperature Coefficient: As low as 0.0005%/°C at a test current of 7.5 mA, minimizing voltage variation with temperature changes. ​
