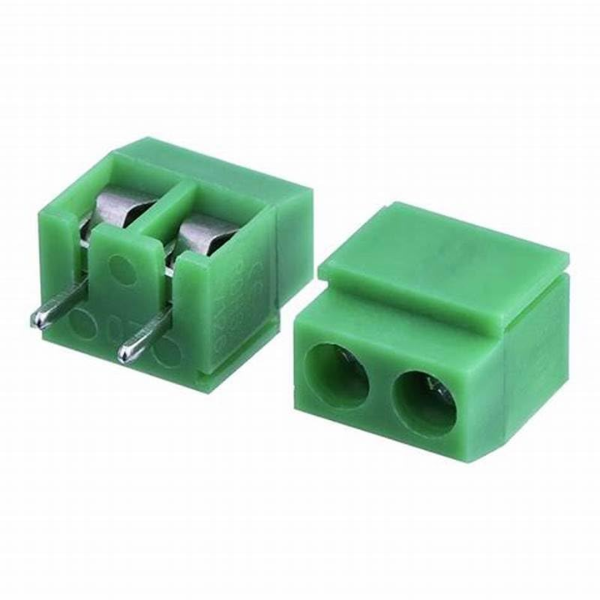

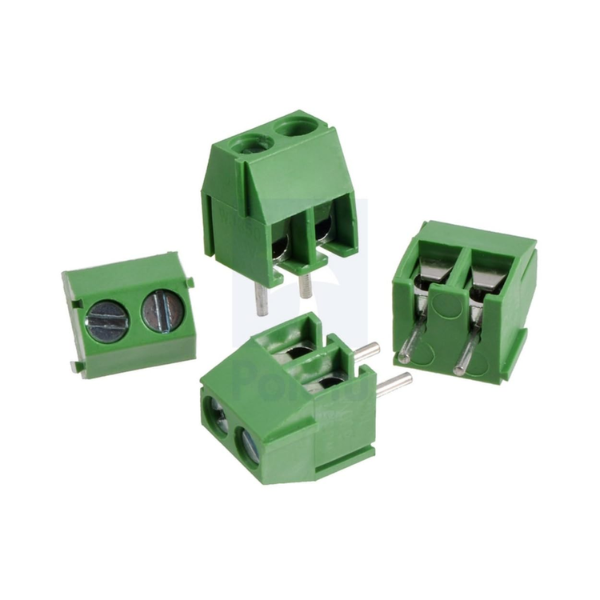

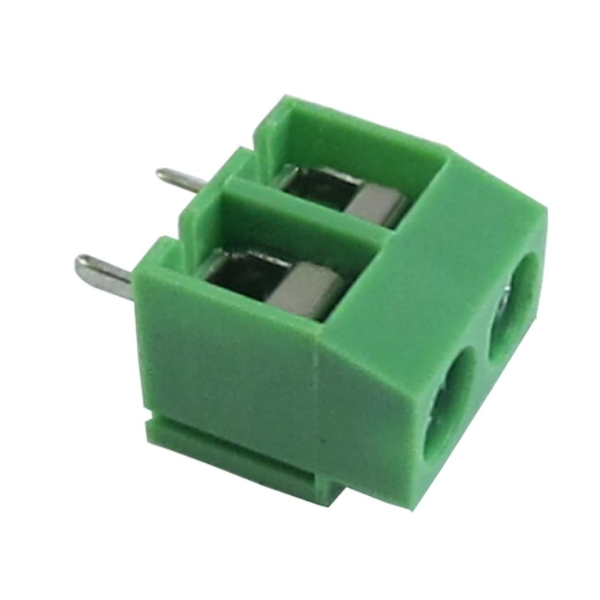

PCB Screw Terminal Block 2 Pin Connector 5mm Pitch 128-2 - 20 pack

2-Pin 5.08mm Pitch Screw Terminal Block: Compact and Reliable

Upgrade your electronics projects with this space-saving 2-pin screw terminal block. Designed for efficient wire connections on PCBs, it offers a reliable and versatile solution.

Key Features:

• Compact Design: Ideal for applications where space is limited.
• Screw Terminals: Securely hold wires in place.
• Wide Wire Compatibility: Accommodates wires from 12 to 22 AWG.
• High Contact Density: Perfect for miniature rack systems and telecom equipment.
• Easy Installation: Compatible with standard 0.1" male and female headers.

Applications:

• PCB Connections: Connect wires to your circuit boards.
• Miniature Rack Systems: Use in space-constrained environments.
• Telecom Equipment: Integrate into communication systems.
• Prototyping: Experiment with different circuit configurations.

Specifications:

• Connector Type: PCB Terminal Block
• Termination: Screw
• Number of Contacts: 2
• Allowed Wire Size (AWG): 22-12
• Voltage: 320V
• Operating Current: 6A
• Mounting Type: Through Hole
• Pin Spacing: 5.08mm
• Dimensions: 10 x 10 x 18mm
• Weight: 3 grams (each)

Choose this 2-pin screw terminal block for a reliable and efficient connection in your projects.

DATA SHEET AND USECASE

Key Specifications:

• Voltage Rating: Up to 300V
• Current Rating: Ranges from 10A to 20A, depending on the specific model
• Pitch (Pin Spacing): 5mm
• Wire Gauge Compatibility: Supports wire sizes from 12 to 24 AWG
• Mounting Type: PCB mount, typically through-hole
• Termination Method: Screw clamp
• Operating Temperature Range: -40°C to +105°C
