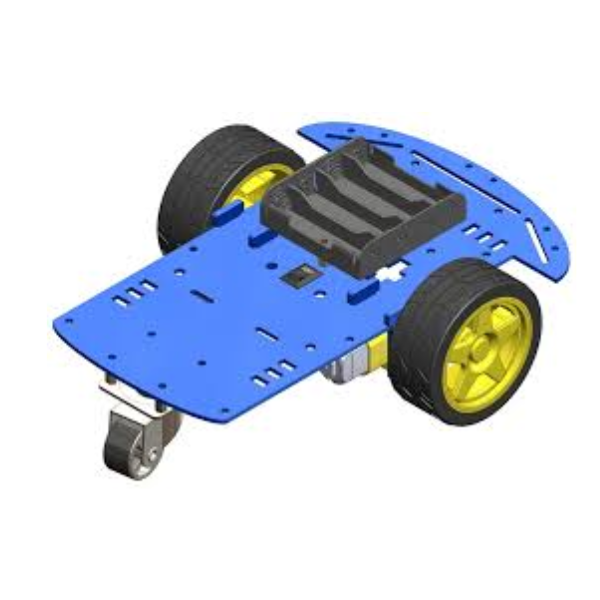

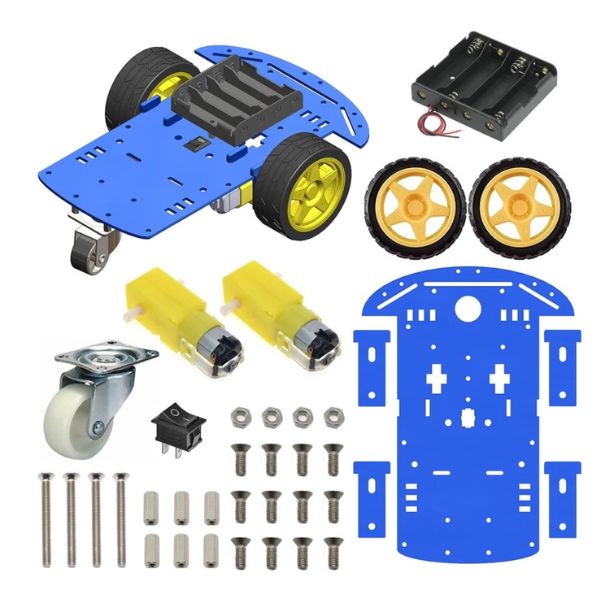

2WD Robotics Chassis With Motors Wheels And Accessories V1.0 (BLUE)

The 2WD Robotics Chassis With Motors Wheels And Accessories V1.0 (BLUE) is a versatile and customizable platform for building a wide range of robotic projects. It provides a sturdy foundation with essential components like two motors, wheels, and a battery holder, along with additional accessories to enhance functionality and creativity.

Key Features:

• 2-Wheel Drive: Offers good maneuverability and stability for various applications.
• Motors: Powerful motors deliver ample torque for driving the chassis and powering attachments, ensuring robust performance.
• Wheels: High-quality wheels with good grip and durability contribute to smooth and reliable operation.
• 18650 Battery Holder: Accommodates multiple 18650 batteries, providing ample power for extended runtime and flexibility in powering different components.
• Modular Design: Allows for easy customization and attachment of various sensors, actuators, and other components, enabling you to build robots tailored to specific tasks.
• Accessories: Includes additional components such as jumper wires, screws, nuts, and other useful items to support your robotic creations.
• Blue Color: Adds a visually appealing element to the chassis, making it stand out and complement different project themes.

DATA SHEET AND USECASE

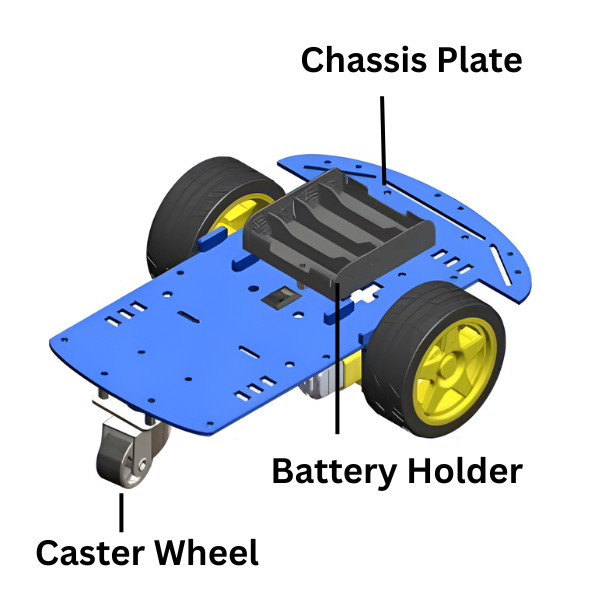

Key Components:

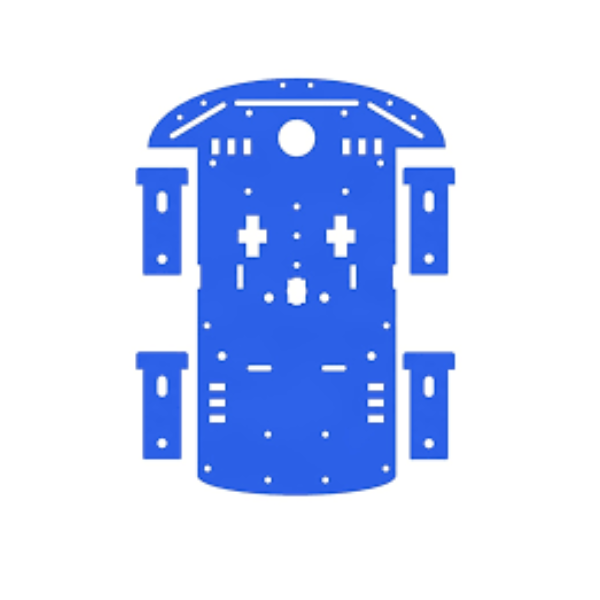

• Chassis: Constructed from high-quality acrylic, the chassis offers durability and ample space for mounting various components. Its design includes multiple mounting holes, facilitating the easy installation of control boards, sensors, and other modules.

• Motors: The kit includes two DC gear motors with the following specifications:

  • Operating Voltage: 3V to 6V DC
  • Gear Ratio: 1:48
  • No-load Speed (at 5V): Approximately 208 RPM
  • Rated Torque: 0.8 kg·cm at 5V
  • Load Current: 170 mA at 4.5V


• Wheels: The chassis is equipped with two wheels, each with a diameter of 65 mm, providing stable movement and traction.

• Additional Accessories: The kit comes with a 4-cell AA battery holder, a caster wheel for balance, and all necessary mounting hardware, including screws and nuts, ensuring straightforward assembly.
