500 Ohm Multi-Turn Preset (Potentiometer) Pack 3

Description:

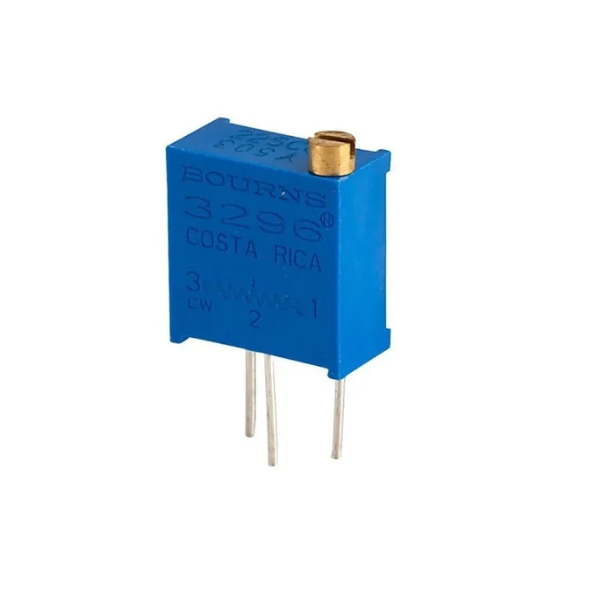

Enhance your circuit designs with the Bourns 3296W trimpot trimmer potentiometer. This high-performance component offers exceptional precision, durability, and versatility for a wide range of applications.

Key Features:

• Accurate Resistance: 500 Ohm resistance for precise control over your circuits.
• Temperature Stability: ±100 ppm/ºC temperature coefficient ensures reliable operation in varying environments.
• Wide Operating Range: -55ºC to +125ºC for compatibility with demanding projects.
• Multiturn Design: Provides fine-grained adjustments for precise resistance control.
• Easy Installation: Through-hole mounting for simple integration into your projects.
• Versatile Applications: Ideal for adjusting voltage, current, volume, brightness, and more.

Specifications:

• Resistance: 500 Ohm
• Tolerance: 10%
• Temperature Coefficient: ±100 ppm/ºC
• Operating Temperature Range: -55ºC to +125ºC
• Mounting Type: Through Hole
• Actuation Type: Lead screw (linear wiper path)

Package Includes:

• 3 x 500 Ohm multiturn trimmer potentiometers (3296W)

DATA SHEET AND USECASE

Key Specifications:

• Resistance Value: 500 ohms
• Adjustment Mechanism: Multi-turn (typically 10 turns for full-scale adjustment)
• Power Rating: Varies by model; commonly around 0.5W
• Tolerance: Typically ±5%
• Type: Cermet or wirewound
• Mounting Style: Through-hole or surface-mount, depending on the specific model
