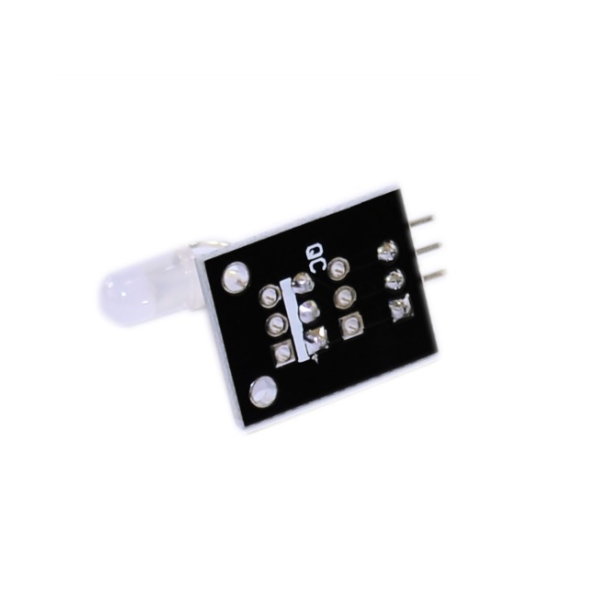

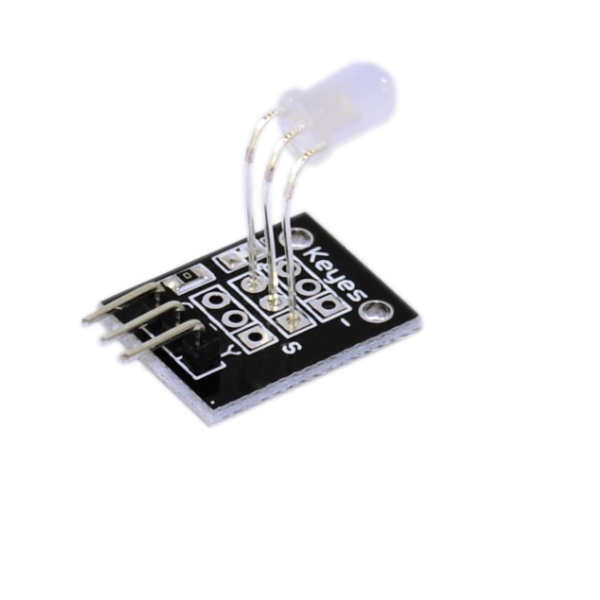

5mm Two-Color LED Module

Description

The 5mm Two-Color LED Module is a versatile electronic component that combines two different colored LEDs in a single package. This allows for a wide range of color combinations and effects, making it suitable for various applications.

Key Features:

• Two-Color LED: Contains two LEDs of different colors, typically red and green.
• 5mm Diameter: The compact size of 5mm makes it suitable for a wide range of electronic projects and devices.
• High Brightness: Offers high brightness and luminous intensity, ensuring visibility in different lighting conditions.
• Long Lifespan: Designed for extended service life, providing reliable performance over time.
• Versatile Applications: Suitable for various applications, including LED lighting, decorations, signage, and electronic projects.

DATA SHEET AND USECASE

Key Specifications:

• LED Colors: Red and Green
• LED Size: 5mm diameter
• Operating Voltage:
  • Red LED: 1.9V to 2.2V
  • Green LED: 2.3V to 2.6V
• Operating Current: 20mA per LED
• Luminous Intensity:
  • Red LED: 60 to 80 millicandelas
  • Green LED: 20 to 40 millicandelas
• Pin Configuration: Common cathode (shared negative terminal) with individual anodes for each LED color
