6mm 650nm 5mW Red Line Laser Module

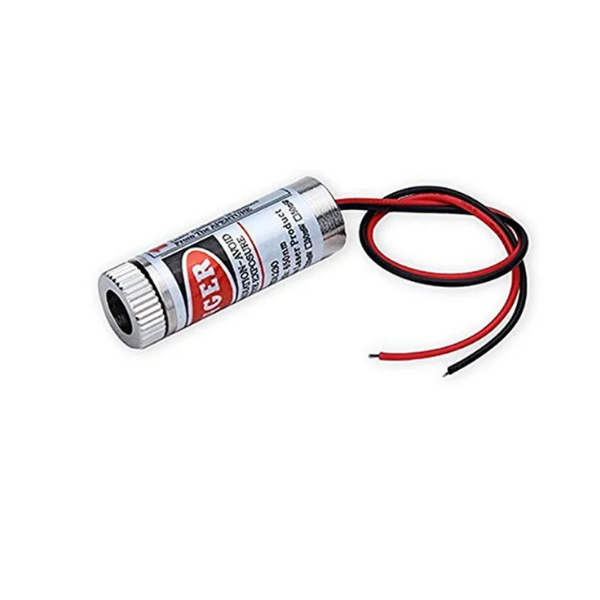

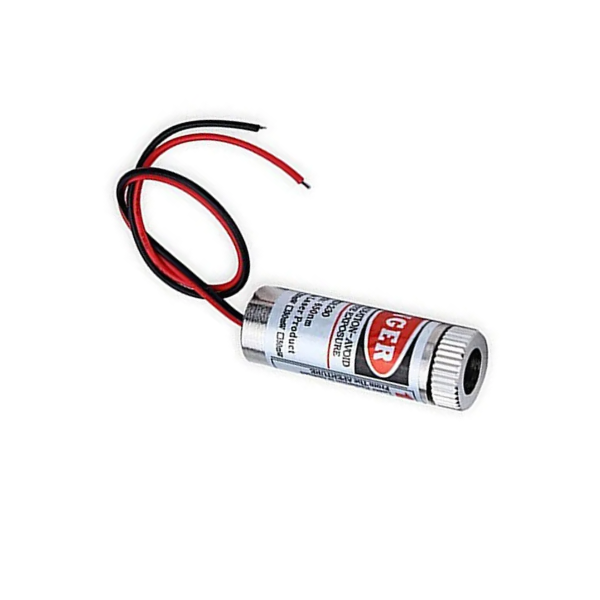

MXD1230 12mm 650nm 5mW Red Line Laser Module

Illuminate your projects with this high-powered red laser beam.

Designed for precision and versatility, this laser module delivers a powerful red laser beam ideal for various applications.

Key Features:

• Red Line Laser Output: Provides a clear and focused red laser beam.
• 5mW Output Power: Offers strong visibility and performance.
• Compact Design: Small and lightweight for easy integration.
• Versatile Applications: Suitable for alignment, measurement, and presentation purposes.
• Durable Construction: Ensures long-lasting reliability.

Specifications:

• Laser Output Type: Red Line Laser
• Wavelength: 650nm
• Output Power: Minimum 2.5mW, Typical 3.0mW, Maximum 5.0mW
• Working Current: Minimum 10mA, Typical 20mA, Maximum 25mA
• Working Voltage: Minimum 2.3VDC, Typical 4.5VDC, Maximum 8.0VDC
• Weight: 15 grams

Choose this MXD1230 laser module for a reliable and powerful laser solution.

DATA SHEET AND USECASE

Technical Specifications:

• Wavelength: 650 nm (red light)
• Output Power: 5 mW
• Operating Voltage: Typically 3V to 5V DC
• Operating Current: Approximately 20 mA
• Dimensions: 6mm diameter, length varies by manufacturer
• Focus: Some modules offer adjustable focus
• Beam Divergence: Line beam spread is typically around 120°, resulting in a line length of approximately 15 cm at a 5 cm distance from the source
