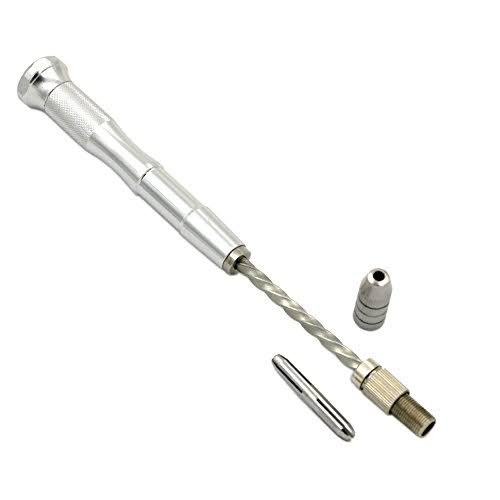

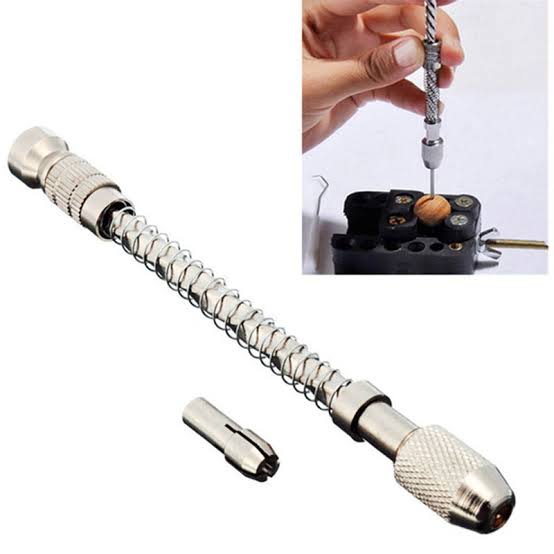

PCB Push Hand Drill Machine
Description:
A PCB push hand drill machine is a compact and portable tool designed for precision drilling in printed circuit boards (PCBs). It offers a convenient and efficient way to create holes for components and connections on PCBs.
Key Features:
- Manual Operation: Operated by pushing the drill bit down into the PCB.
- Adjustable Depth: Allows for precise control over hole depth.
- Compact Design: Portable and easy to use in various settings.
- Versatile Applications: Suitable for drilling holes in PCBs, prototyping, and small-scale projects.
- High-Speed Steel (HSS) Drill Bits: Ensures efficient and accurate drilling.
Applications:
- PCB Manufacturing: Creating holes for components in printed circuit boards.
- Prototyping: Developing and testing electronic circuits.
- DIY Projects: Drilling holes in PCBs for custom electronic projects.
- Hobbyists and Makers: Creating and repairing electronic devices.
Specifications:
- Weight: Approximately 200 grams
- Chuck Size: 3.2mm
- Material: Plastic (for the body) and metal (for the internal components)
- Drilling Capacity: Typically up to 1.5mm in thickness for PCBs
- Depth Adjustment: Adjustable to control the depth of the drilled hole (usually within a range of 1-5mm)
DATA SHEET AND USECASE
Key Specifications:
-
Material: Typically constructed from anodized aluminum and steel, ensuring durability.
-
Drilling Capacity: Suitable for drilling holes ranging from 0 to 3 mm in diameter, accommodating most through-hole components.
-
Length: Approximately 185 mm, providing a comfortable grip and control during operation.
