The 7 Color Flashing LED Module is a versatile electronic component that features seven individual LEDs, each emitting a different color. It is designed to create dynamic and eye-catching lighting effects through sequential or random color changes.
Key Features:
- 7-Color LED Array: Includes seven LEDs emitting different colors, such as red, green, blue, yellow, orange, purple, and white.
- Flashing Mode: Can be programmed to flash the LEDs in various sequences or patterns, creating a dynamic and visually appealing effect.
- Adjustable Brightness: Allows for adjusting the brightness of the LEDs to suit different lighting conditions.
- Easy-to-Use: Simple to integrate into electronic projects and control using appropriate software or hardware.
- Wide Applications: Suitable for various applications, including LED lighting, decorations, signage, and electronic projects.
DATA SHEET AND USECASE
Technical Specifications:
- LED Type: 5mm round head, tri-color (RGB) LED
- Working Voltage: 3.0V – 5.0V DC
- Color Sequence: Predefined, automatic cycling through seven colors
- Lens Type: Water clear or white mist, depending on the variant
- Current Limiting: Requires an external resistor (e.g., 220Ω) to limit current and prevent damage

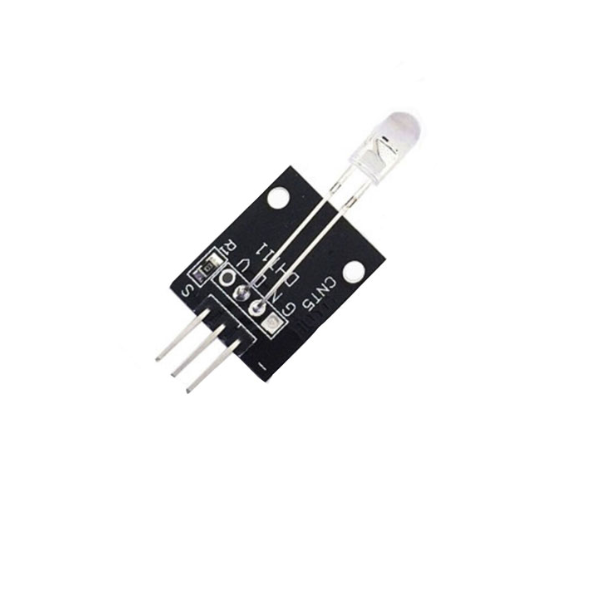

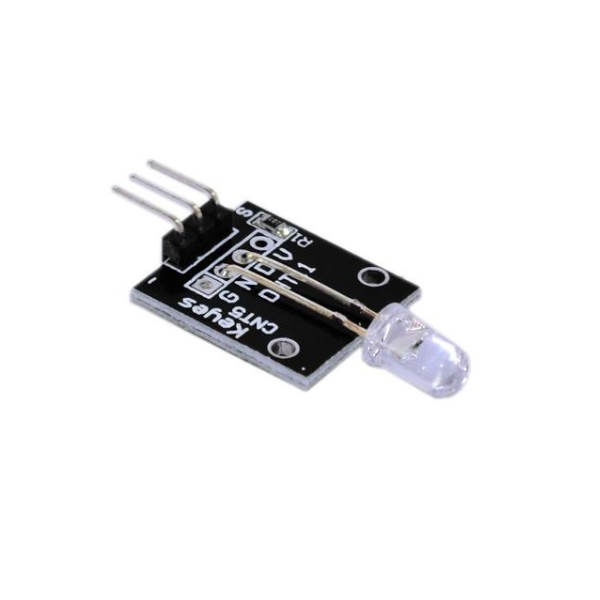

Module Connections:
The module typically has a 3-pin header with the following connections:
- S (Signal): Connects to a digital output pin on a microcontroller (MCU) or directly to a power source (3.3V or 5V)
- Center Pin (-): Ground (GND)
- 3rd Pin: Not used
