8 Pin Slide Type 4 Row DIP Switch Pack 5

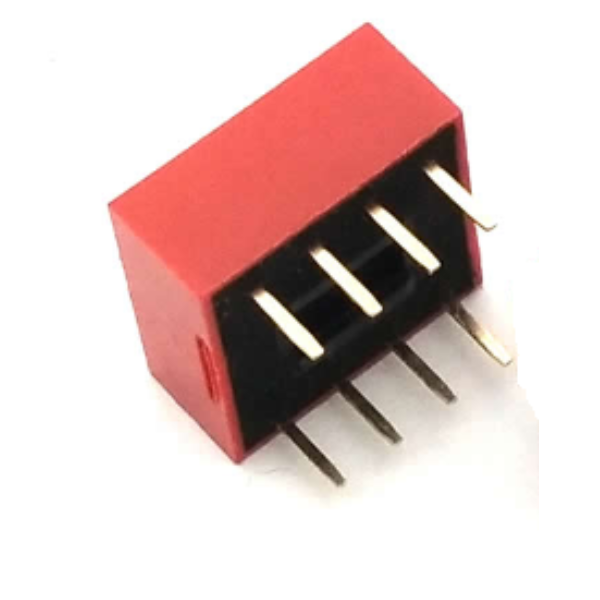

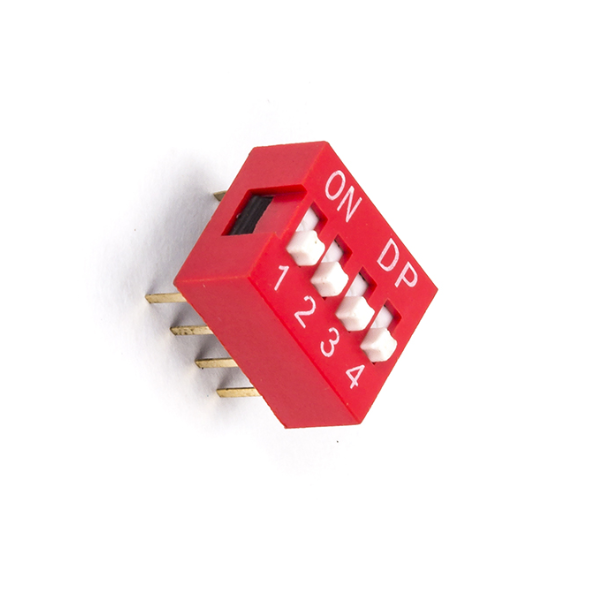

4-Position DIP Slide Switch

Versatile Configuration Control

This 4-position DIP switch offers a convenient and flexible way to configure and control various electronic circuits. Its compact design and easy-to-use slide mechanism make it ideal for a wide range of applications.

Key Features:

• 4 Individual Positions: Fine-tune your settings with precision
• DIP Package: Compact and easy to integrate into your circuits
• Slide Switch Mechanism: Simple and reliable operation
• Through-Hole Mounting: Easy integration into your circuits
• Multiple Pin Options: Choose between long or short pins and convex or flat bottoms

Applications:

• Stage Lighting Control: Adjust lighting settings and effects
• DIY Projects: Create custom electronic gadgets and prototypes
• Digital Switching: Implement various digital functions and configurations
• PC Hardware: Control modems, hard drives, and other components
• Remote Controls: Operate multiple devices with a single controller

DATA SHEET AND USECASE

Key Features:

• Configuration: Each switch has 8 individual slide actuators arranged in a single row, enabling binary on/off settings for each position.

• Contact Form: Single Pole Single Throw (SPST), meaning each switch position independently connects or disconnects a single circuit path.

• Pitch: Typically, a 2.54 mm (0.1 inch) pin spacing, compatible with standard breadboards and PCBs.

• Mounting Style: Through-hole, facilitating secure attachment to printed circuit boards.
