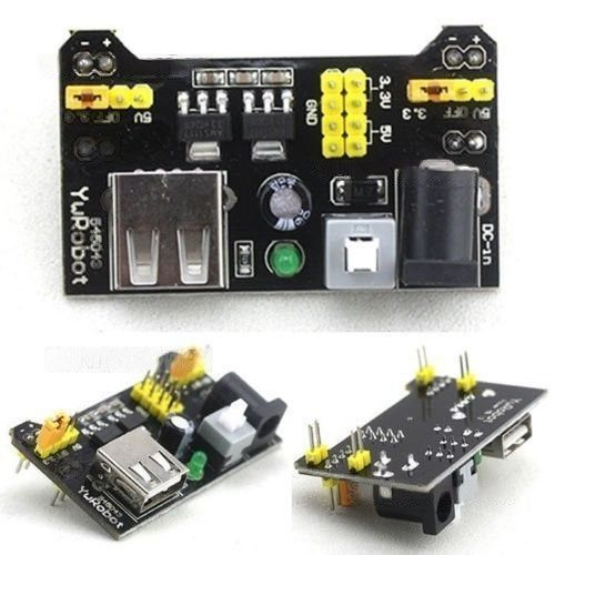

Breadboard Power Supply 3.3V/5V

1) Input voltage: DC 6.5~12V or USB powered
2) For MB102 Breadboard
3) Output voltage: 3.3V, 5V switchable
4) Maximum output current: <700mA up and down two independent control
5) Can be switched to 0V, 3.3V, 5V

Description:

Use this power regulation module to provide 5V and 3V3 power supply to your breadboard based project. This power supply board is designed to plug into a Breadboard panel with 2 power Distribution strips. The module can be powered by a USB port or an external power supply 7-12V. The module has two independent power lines, which can be set to output voltage of 5V or 3.3V, or completely remove power from the line. The module has ON / OFF switch to turn on and off module. It comes with reverse polarity and short circuit protections, which greatly helps during building and testing circuits on the breadboard

Features:

• Color: Black + yellow

• Material: Glass fiber

• The breadboard dedicated power supply module, compatible with 5V, 3.3V

• Input voltage: DC 6.5~12V or USB powered

• For MB102 Breadboard

• Output voltage: 3.3V, 5V switchable

• Maximum output current: <700mA up and down two independent control

• Can be switched to 0V, 3.3V, 5V

• On-board two sets of 3.3V, 5V DC output pins, convenient for external pins out use

• Dimensions: 2.09 in x 1.26 in x 0.83 in (5.3 cm x 3.2 cm x 2.1 cm)

• Weight: 12
