HLK-1D0505A 5V Isolated Power Supply Module

1) Small SIP package
2) Conversion efficiency 88% (Typ)
3) Isolation between input & output is required (isolation voltage <=1500VDC)
4) No-load input current as low as 5mA

Description:

HLK-1D0505A is an 1 Watt series isolated DC-DC power module.  is one type power supply module with small size, high efficiency, tiny power, constant voltage, input isolation and unregulated, single output; this series of products are specially designed to generate a group of isolated voltage to input power supply in the on-board power system applications. This product is suitable for purely digital circuits, general low frequency analog circuits, relay driver circuits, data exchange circuits, etc.

Features:

• Small SIP package

• Conversion efficiency 88% (Typ)

• Isolation between input & output is required (isolation voltage <=1500VDC)

• No-load input current as low as 5mA

• The voltage of the input power supply is relatively stable (voltage variation range +- 10% Vin)

• Operating temperature range: -40oC ~ +85oC

• Output short-circuit protection, low requirements for output voltage stability

• Low ripple / noise (20MH bandwidth): 30m Vp-p (typ)

• International standard pins, PCB board in-line installation

• Adopting high quality environmental protection waterproof & thermally conductive

• adhesive potting, moisture-proof, vibration-proof, meet the waterproof & dustproof IP65 standard

• High reliability, long life design, long continuous working time

Specifications:

• Hi-link part number : HLK-1D0505A

• Morsun part number : B0505S-1WR3

• Power : 1W

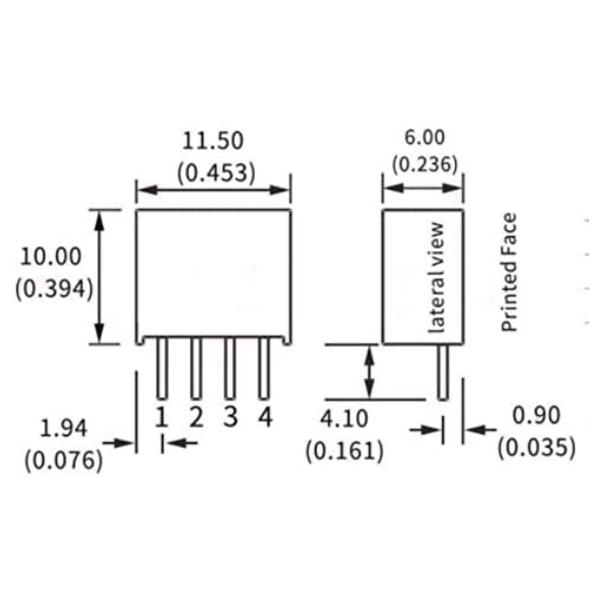

• Package size : 11.5*10.0*6.0 mm

• Input voltage range : 4.5~5.5 Vdc

• Output voltage form : Single voltage regulator

• Isolation voltage : 1500Vdc

Package Include:

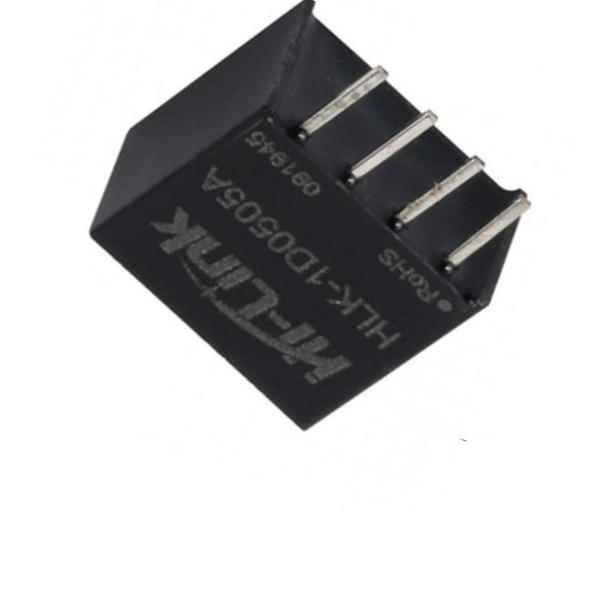

• 1 x HLK-1D0505A 5V Isolated Power Supply Module
