CL100 Power Transistor Pack 3

Description:

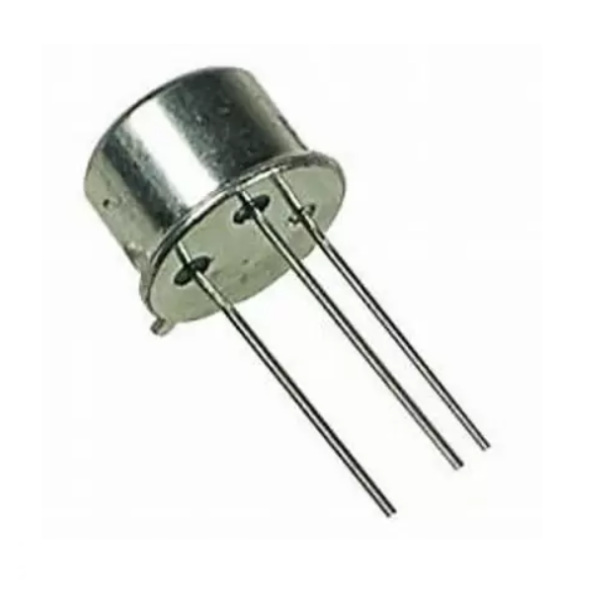

The CL100 is a versatile NPN power transistor designed for high-performance applications. Its rugged construction, high power handling capabilities, and wide operating temperature range make it ideal for demanding electronic circuits.

Key Features:

• Simple drive requirements: Easy to control with minimal input signal.
• High safe operating area: Handles a wide range of operating conditions.
• Complementary design: Ideal for use with PNP transistors in push-pull amplifiers.
• Wide operating temperature range: Suitable for various environments.
• High ruggedness: Built to withstand harsh environments and mechanical stress.

Specifications:

• Transistor Polarity: NPN
• Power Dissipation (Pd): 3W
• Continuous Collector Current (Ic): 1A
• Collector-Emitter Voltage (VCEO): 50V
• Operating Temperature Range: -55°C to 175°C

Applications:

• Motor control
• Power amplifiers
• Switching circuits
• Industrial automation
• Automotive electronics

DATA SHEET AND USECASE

Key Specifications:

• Collector Current (ICM): 1 A​
• Emitter-Base Voltage (VEBO): 5 V​
• Collector-Base Voltage (VCBO): 60 V​
• Collector-Emitter Voltage (VCER): 50 V​
• Power Dissipation (PD): 800 mW at 25°C
