The BC857 is a general-purpose PNP transistor designed for low-power amplification and switching applications. It's a popular choice due to its reliability, versatility, and compact size.
Key Features:
- High Reliability: Ensures consistent performance and durability.
- Audio Frequency Amplification: Specifically designed for use in audio circuits.
- PNP Bipolar Transistor: Suitable for both switching and amplification applications.

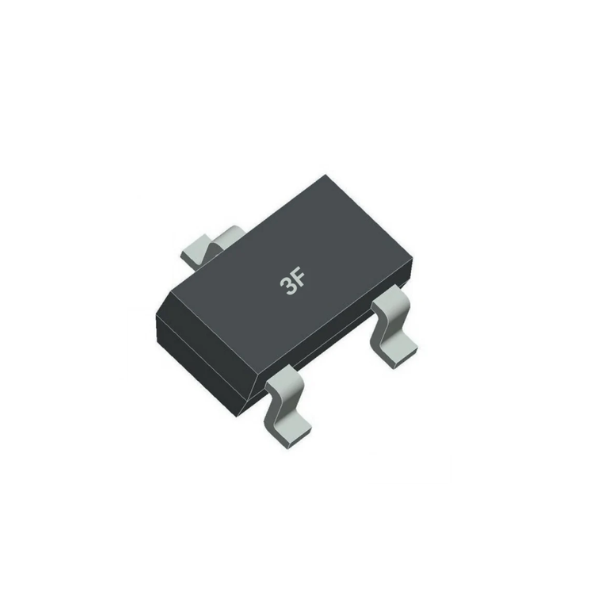

- SOT-23 Package: A surface-mount package that is small and easy to integrate into PCB designs.
- Low Power Consumption: Ideal for battery-powered devices and other applications where power efficiency is crucial.
Applications:
- Preamplifiers
- Tone controls
- Volume controls
- Audio amplifiers
- Switching circuits
- General-purpose electronics
Specifications:
- Package: SOT-23
- Base Current : 5mA
- Collector Current : 100mA
- DC Current Gain : 200-300
- Collector-Emitter Voltage : 45V
- Power Dissipation: 0.65W (at 25°C)
DATA SHEET AND USECASE
Key Features:
- Maximum Current: It supports a maximum collector current of -100 mA.
- Maximum Voltage: The BC857 can handle a maximum collector-emitter voltage of -45 V.
- Complementary Pair: Its NPN complement is the BC847, allowing for push-pull configurations.
- Low Noise: The transistor is designed for low noise operation, making it suitable for audio frequency applications.
