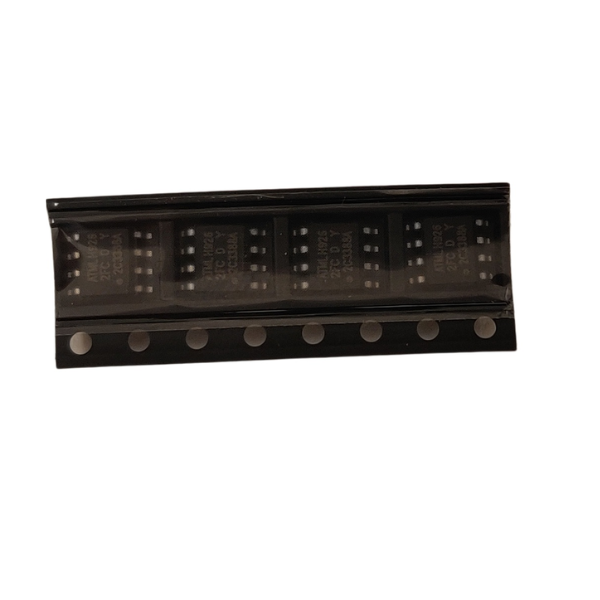

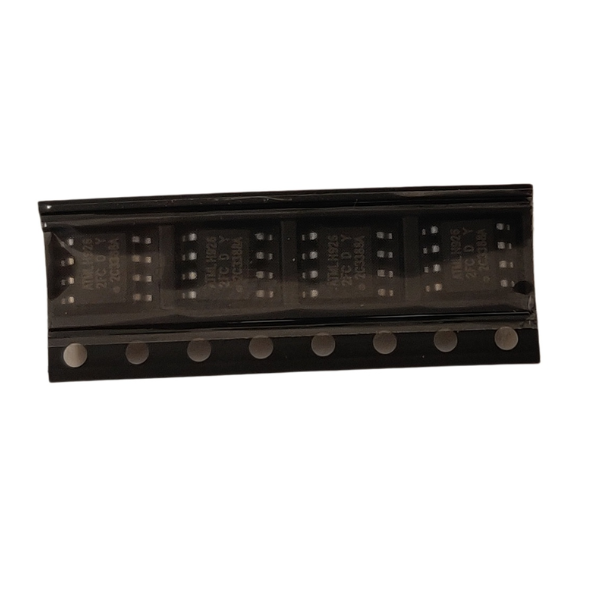

AT24C512- SOIC8-I2C EEPROM

AT24C512 64Kbit Serial EEPROM

Elevate your electronic projects with our high-quality AT24C512 serial EEPROMs. These versatile components offer reliable data storage and efficient operation for various applications.

Key Features:

• Large Storage Capacity: 64Kbits (512Kbit) for ample data storage.
• Low Power Consumption: Active current of 400 uA and standby current of 100 nA ensure efficient operation.
• Wide Operating Voltage: Compatible with 1.7V to 5.5V power supplies.
• Fast Data Transfer: Supports up to 100 kHz and 400 kHz clock speeds.
• I²C Interface: Easily integrates with other I²C-compatible devices.
• Cascadable: Connect up to eight devices on the same bus for expanded storage.
• Self-Timed Erase/Write Cycle: Efficient data management.
• Hardware Write-Protect: Securely protect sensitive data.
• ESD Protection: Protects against electrostatic discharge.

Applications:

• Data Storage: Store configuration settings, calibration data, and other important information.
• Real-Time Clocks (RTCs): Maintain accurate timekeeping.
• Non-Volatile Memory: Store data that needs to be retained even when power is off.
• IoT Devices: Store sensor data, configuration settings, and firmware updates.
• Industrial Automation: Control and monitor equipment.

Specifications:

• Memory Capacity: 64Kbits (512Kbit)
• Interface: I²C
• Operating Voltage: 1.7V to 5.5V
• Power Consumption: Active current 400 uA, standby current 100 nA
• Data Transfer Rates: 100 kHz and 400 kHz
• Package: SOIC8

Conclusion:

The AT24C512 serial EEPROM is an essential component for various electronic projects that require reliable data storage. Its versatility, low power consumption, and wide operating voltage range make it a valuable choice for engineers and hobbyists alike.

DATA SHEETA ND USEACASE

Key Features:

• Memory Organization: 65,536 x 8 bits (512 Kb)
• Operating Voltage Range:
  • 1.7V to 3.6V
  • 2.5V to 5.5V
• I²C Interface Compatibility:
  • Standard Mode: 100 kHz
  • Fast Mode: 400 kHz
  • Fast Mode Plus (FM+): 1 MHz
• Write Protection: Incorporates a write-protect pin for hardware data protection
• Page Write Capability: Supports 128-byte page write mode, allowing partial page writes
• High Reliability:
  • Endurance of 1,000,000 write cycles
  • Data retention of up to 100 years
